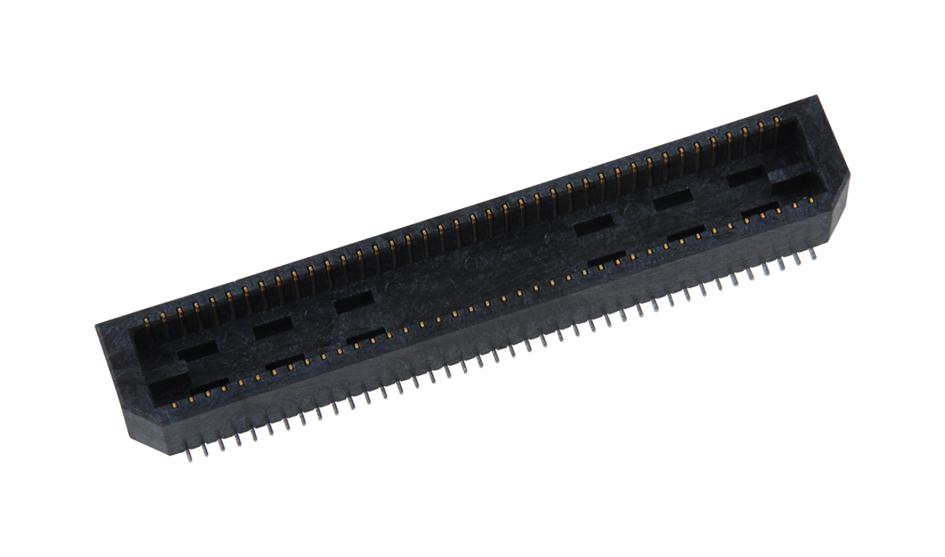

SAMTEC BTE06001LDA High-density connector
This high-performance contact connector features Liquid Crystal Polymer insulators and phosphor bronze contacts, rated for 2 A per pin with a maximum voltage of 225 VAC. It withstands temperatures from -55°C to +125°C, ensuring reliability in demanding environments. The connector supports up to 100 cycles, has RoHS compliance, and is lead-free solderable. Available in various stack heights between 11mm and 30mm, with options for edge mount and friction lock features, designed for seamless SMT integration with compatibility for high-density applications.
SAMTEC BTE06001LDA High-density connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 2 A per pin
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 225 VAC
- Max Cycles: 100
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Stack Height Options: 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm
- Mating Height: 6.00 or 8.00 mm (depending on style)
- Edge Mount Capability: Yes
- Friction Lock Option: Yes
- Maximum Lead Tails: 0.10 mm (.004")
- Dimensions: Supports various sizes and styles with specific height and length options
- Durability: Up to 100 Mating Cycles
- Compatibility: Designed to mate with specific headers and connectors, suitable for high-density PCB applications
Buy the Buy Samtec BTE06001LDA Part Number BTE06001LDA Online
Purchase the high-density connector online today for precise, reliable, and RoHS-compliant interconnections suitable for demanding electronic projects. Designed with Liquid Crystal Polymer insulators and phosphor bronze contacts, this connector offers a 2 A current rating, -55°C to +125°C temperature range, and up to 100 mating cycles. Its diverse stack height options from 11mm to 30mm enable compatibility with various PCB designs. Features like edge mount and friction lock enhance installation efficiency, making it an ideal choice for innovative and durable electronic systems.
Buy Samtec BTE06001LDA now and experience seamless high-density connection reliability for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC BTE06001LDA?
You can click on the BUY or RFQ button to purchase BTE06001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BTE06001LDA?
You can download the BTE06001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BTE06001LDA?
SAMTEC
