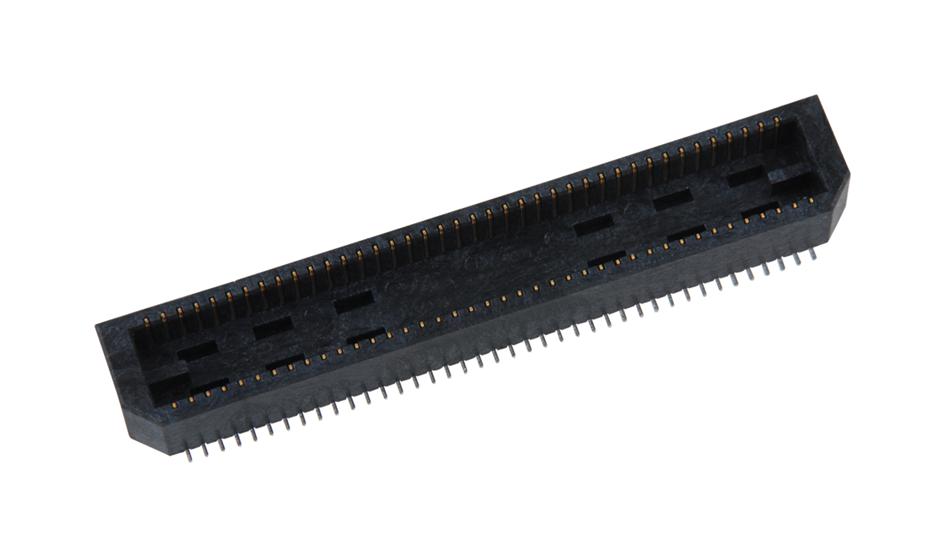

SAMTEC BTE08001LDA SMT connector
This is a high-performance SMT connector designed for reliable electrical connections in industrial and electronic applications. Made with liquid crystal polymer insulators and phosphor bronze contacts, it offers a current rating of 2 A per pin and a voltage rating of 225 VAC. The connector supports a stack height range up to 30 mm and can withstand up to 100 mating cycles. RoHS compliant and lead-free, it features gold or tin plating over nickel for enhanced durability and corrosion resistance, making it suitable for demanding electronic systems.
SAMTEC BTE08001LDA SMT connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 2 A per pin
- Voltage Rating: 225 VAC
- Max Cycles: 100
- Operating Temperature Range: -55°C to +125°C
- Stack Height: Up to 30 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Dimensions: 0.80 mm (0.0315")
- Material: Phosphor Bronze, Liquid Crystal Polymer
- Processing: Suitable for SMT Lead Coplanar, Automatic Placement
- Edge Mount Capability: Yes
- Locking Options: Friction Lock, Locking Lever
- Mating with: Beal Files 1121, 080, 100, 120
- Certifications: Recognized under RoHS regulations
Buy the Samtec BTE08001LDA – Reliable SMT Connector for Industrial Applications
Order the Samtec BTE08001LDA SMT connector online today to ensure your electronic systems operate with maximum reliability and efficiency. Featuring high-grade liquid crystal polymer insulators and durable phosphor bronze contacts, this connector supports up to 30 mm stack height and 100 mating cycles. It is RoHS compliant, lead-free, and offers gold or tin over nickel plating for corrosion resistance. Perfect for demanding electronic assemblies, this connector guarantees stable connections, easy installation, and long-lasting performance in various industrial and commercial applications.
Buy Samtec BTE08001LDA now and experience unmatched reliability for electronic and industrial systems.
Frequently Asked Questions
Where can I buy SAMTEC BTE08001LDA?
You can click on the BUY or RFQ button to purchase BTE08001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BTE08001LDA?
You can download the BTE08001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BTE08001LDA?
SAMTEC
