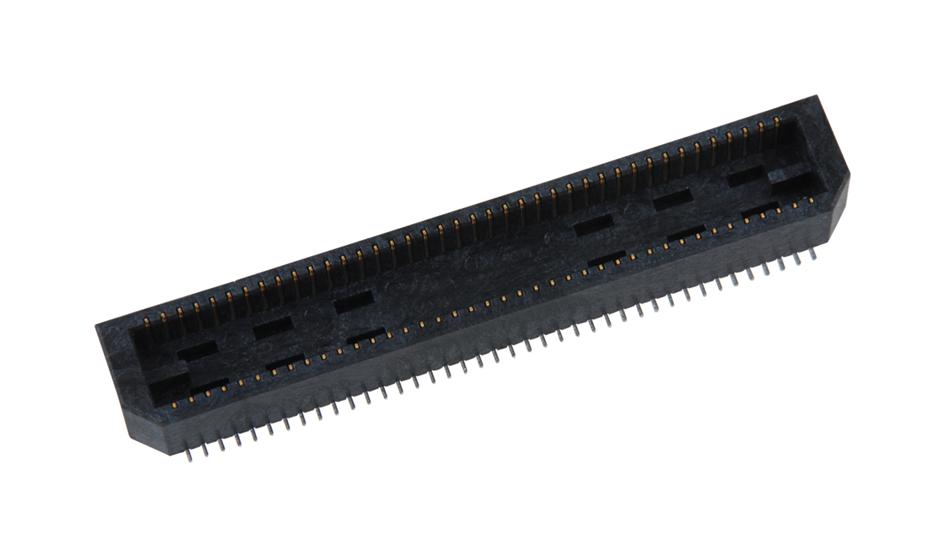

SAMTEC BTE10002LDA Electrical Connector
The product is a high-performance electrical connector designed for PCB applications, featuring Liquid Crystal Polymer insulators and phosphor bronze contacts. It supports up to 2 A per pin, with a maximum voltage rating of 225 VAC, and is RoHS compliant. The connector offers a stack height range from 11 mm to 30 mm, with gold or tin plating over nickel for reliable electrical connections. Suitable for automated assembly, it can withstand up to 100 cycles and handles operating temperatures from -55°C to +125°C, ensuring durability and versatility in various industrial environments.
SAMTEC BTE10002LDA Electrical Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Nickel
- Current Rating: 2 A per pin
- Voltage Rating: 225 VAC
- Operating Temperature Range: -55°C to +125°C
- Maximum Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Stack Height: 11mm to 30mm
- Contact Plating: 30" Gold on contact
- Dimensions: Standard stack height varies from 11mm to 30mm, contact pitch 0.80mm
- Processing: Suitable for automated placement and inspection, with coplanarity within 0.10mm
- Mechanical Reliability: Mates with specific Beal files, with low insertion forces and durable connections
Buy the Buy Samtec Connector Part Number BTE10002LDA Online
Purchase the Samtec BTE10002LDA connector online today and benefit from fast delivery, guaranteed quality, and excellent technical support. This high-quality PCB connector is engineered for reliable performance, featuring Liquid Crystal Polymer insulators, gold or tin plating, and support for up to 2 A per pin. With a voltage rating of 225 VAC and operating temperature range from -55°C to +125°C, it ensures durability in demanding environments. Perfect for automation and industrial projects, this connector offers adjustable stack heights and is fully RoHS compliant. Order now for seamless integration into your electronic systems.
Order your Samtec BTE10002LDA high-reliability PCB connector today and enhance your electronic assemblies with precise, durable, and RoHS-compliant connections.
