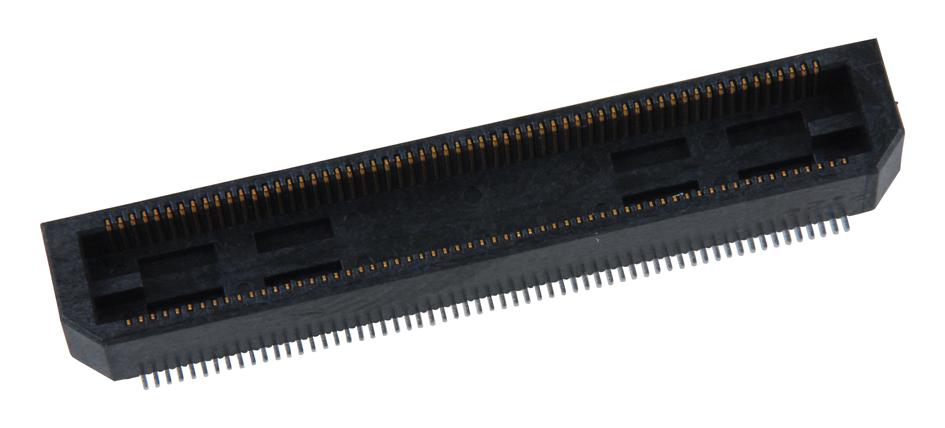

SAMTEC BTH06001LDAK Edge Mount Connector
The BTH-060 series is a versatile SMT edge mount connector featuring a 50-position configuration suitable for high-density applications. Constructed with black LCP insulator and phosphor bronze contacts, it offers gold or tin plating over nickel, providing excellent corrosion resistance. With a current rating of 2.0 A per pin and an operating temperature range from -55°C to +125°C, this connector is RoHS compliant, lead-free, and capable of withstanding up to 100 mating cycles. Its stack height options (8mm to 22mm) accommodate various board stacking requirements, making it ideal for complex electronic assemblies.
SAMTEC BTH06001LDAK Edge Mount Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black LCP
- Plating: Au or Sn over 50 p" Ni
- Current Rating: 2.0 A per pin
- Flammability Rating: UL 94 VO
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 175 VAC
- Stack Heights: 8mm, 11mm, 16mm, 19mm, 22mm
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Max Cycles: 100
- Vertical Coplanarity: 0.10 mm; 0.15 mm (optional)
- Edge Mount Capability: Yes
- Dimensions: 50 mm length, 0.76 μm gold on contact
- Number of Positions: 50
- Compatibility: Suitable with UMPT/UMPS solutions
Buy the Buy Samtec BTH-060 Part Number BTH06001LDAK Online
Discover the convenience of purchasing the high-quality Samtec Edge Mount Connector BTH-060 series online. Designed with 50 positions, this connector ensures excellent connectivity for high-density electronic assemblies. Its durable construction with phosphor bronze contacts, gold or tin plating over nickel, and RoHS compliance guarantees longevity and environmental safety. Suitable for applications requiring stacking options up to 22mm, it offers a current rating of 2.0 A per pin and is rated for up to 100 mating cycles. Purchase today for dependable performance in your electronic projects.
Order your Samtec Series BTH-060 BTH06001LDAK today and equip your projects with reliable, high-density connector technology for complex electronics.
Frequently Asked Questions
Where can I buy SAMTEC BTH06001LDAK?
You can click on the BUY or RFQ button to purchase BTH06001LDAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BTH06001LDAK?
You can download the BTH06001LDAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BTH06001LDAK?
SAMTEC
