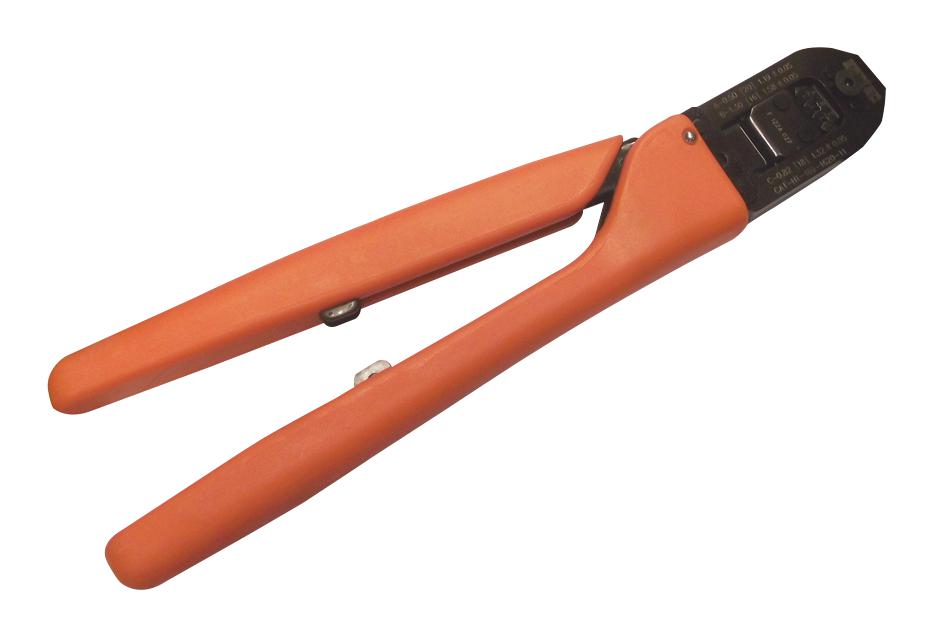

SAMTEC CATHT169162013 Crimping Tool
The CAT-HT-169-1620-13 is a high-quality straight-action hand crimping tool suitable for crimping IPBD series CC69L terminals with wire sizes ranging from 16 to 20 AWG. It features a fixed die, a movable anvil, a locator, and an insulation stop to ensure precise contact positioning and secure crimps. The integrated ratchet guarantees full compression without partial releases, enhancing electrical and tensile performance. Designed for maintenance and repair tasks, this tool ensures consistent, reliable connections vital in electrical assembly and wiring applications.
SAMTEC CATHT169162013 Crimping Tool Specifications:
- Weight: approximately 622.6 grams (1 lb. 6 oz.)
- Compatible with wire sizes: 16 to 20 AWG
- Crimping range: 2.46-2.62 mm (0.097-0.103 inches) for 16 AWG, 3.05-3.20 mm (0.120-0.126 inches) for 18 AWG, 2.72-2.87 mm (0.107-0.113 inches) for 20 AWG
- Crimp height regulated by insulation adjustment knob
- Features fixed die, movable die, locator, insulation stop, and ratchet mechanism
- Material: Durable metal construction with precise dies for reliable crimps
- Designed for consistent electrical and tensile performance
- Includes safety features such as ratchet lock and insulation stop adjustment
- Suitable for maintenance, repair, and production wiring tasks
Buy the Samlec Series Crimping Tool: CAT-HT-169-1620-13
Purchase the Samlec CAT-HT-169-1620-13 crimping tool online today and enjoy high-quality construction, precise contact positioning, and a reliable ratchet mechanism. Designed for electrical maintenance, repair, and production applications, this tool ensures consistent crimps, supporting wire sizes from 16 to 20 AWG. Its durable metal build, adjustable insulation crimp height, and safety features make it an essential addition to any professional electrical toolkit. Secure your electrical connections with confidence by ordering this reliable crimping tool online now.
Buy Samlec CAT-HT-169-1620-13 now and experience unmatched reliability and performance for secure electrical connections.
Frequently Asked Questions
Where can I buy SAMTEC CATHT169162013?
You can click on the BUY or RFQ button to purchase CATHT169162013 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CATHT169162013?
You can download the CATHT169162013 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CATHT169162013?
SAMTEC
