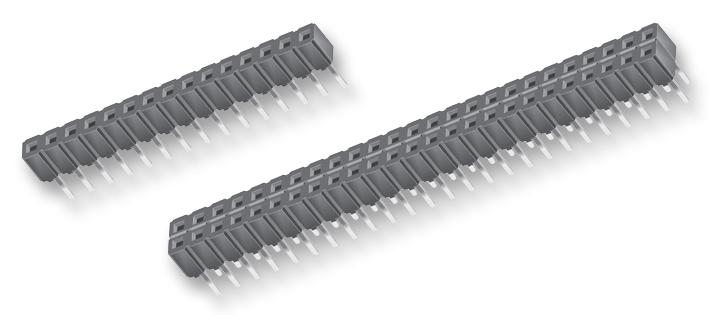

SAMTEC CES10301GS Connector Socket Strip
The CES series from Samtec offers low profile, closed-entry socket strips suitable for through-hole mounting in industrial and electronic applications. Designed with high-performance materials, these sockets are compatible with numerous Samtec connector series such as TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT, and HMTSW. They feature a 2.54 mm pitch, accommodate 1 to 50 contacts per row, and support a temperature range from -55°C to 125°C with gold or tin plating for durability. Constructed from black glass-filled polyester, they provide a voltage rating of 400VAC, with contact resistance of 10 mΩ, ensuring reliable electrical connections in various environments.
SAMTEC CES10301GS Connector Socket Strip Specifications:
- Pitch: 2.54 mm
- Number of contacts per row: 1 to 50
- Material: Black glass-filled polyester insulator
- Contact Material: Phosphor bronze
- Plating Options: Au (20 microns) or Sn over 50u" Ni
- Voltage Rating: 400VAC
- Operating Temperature Range: -55°C to 125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.16 mm to 4.08 mm
- Insertion Force: 3.34 N (single contact, gold plated), 2.22 N (tin plated)
- Withdrawal Force: 1.67 N (gold plated), 1.11 N (tin plated)
- Certifications: UL, CSA recognized
- Assembly: Compatible with SAMTEC connector series, designed for reliable industrial connections
Buy the Samtec CES – Reliable Connector Sockets for Industrial Applications
Enhance your electronic assemblies with the Samtec CES series connector socket strips. Designed for reliable through-hole mounting, these sockets support high-temperature environments and have gold or tin plating for durability. With a 2.54 mm pitch and accommodating up to 50 contacts per row, they are ideal for industrial and electronic applications. Made from high-quality black glass-filled polyester, these sockets offer a voltage rating of 400VAC and low contact resistance, ensuring consistent, secure connections in demanding conditions. Purchase online today for fast, reliable delivery and superior performance.
Order your Samtec CES series socket strip today and ensure dependable, high-performance electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC CES10301GS?
You can click on the BUY or RFQ button to purchase CES10301GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10301GS?
You can download the CES10301GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10301GS?
SAMTEC
