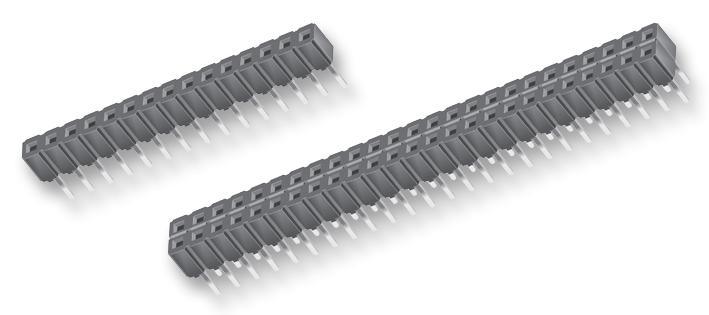

SAMTEC CES10302GSRA Socket Strip Connectors
The CES series from Samtec features low-profile, closed-entry socket strips designed for through-hole mounting, compatible with multiple connector series like TLW, TSW, and MTS. Available in single or dual-row configurations with a pitch of 2.54mm, these connectors have right-angle (-RA) orientation, high temp tolerance from -55°C to 125°C with gold-plated contacts, and are constructed from black G.F. polyester insulators. Rated for 400VAC, with a contact resistance of 10 milliohms, they use a dual leaf contact system made from phosphor bronze. Certified for UL and CSA standards, they are ideal for industrial electronic assemblies requiring reliable connections.
SAMTEC CES10302GSRA Socket Strip Connectors Specifications:
- Insulator Material: Black G.F. polyester
- Contact Material: Phosphor bronze
- Plating Options: Au or Sn over 50u" Ni
- Voltage Rating: 400 VAC
- Operating Temperature Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Contact Resistance: 10 milliohms
- Insertion Depth: 2.16 mm to 2.92 mm (0.085" to 0.115")
- Withdrawal Force: 1.67 N (0.37 lbs) on single contact
- Current Rating: 5.2A per pin
- Certifications: UL E111594, CSA 090871
- Dimensions: pitch 2.54 mm, compatible with various Samtec connectors, dual leaf contact system for reliable connection
- Construction: Dual or single-row options, right-angle (-RA) orientation, black polyester insulator, phosphor bronze contact
- Applicable Standards: UL, CSA
- Additional Features: High-temperature tolerance, gold or tin plating options, designed for industrial electronic assemblies
Buy the Buy Samtec CES Part Number CES10302GSRA Online
Buy Samtec CES10302GSRA socket strip connectors online today and ensure your industrial electronics have reliable, high-performance connections. These low-profile, closed-entry sockets with a 2.54mm pitch feature gold or tin plating, high temperature tolerance from -55°C to 125°C, and a contact resistance of only 10 milliohms. Rated for 400VAC, they suit a multitude of connector series with single or dual-row configurations. Constructed from durable phosphor bronze and black G.F. polyester insulators, these connectors meet UL and CSA standards, making them perfect for demanding industrial environments and ensuring long-lasting, stable electrical connections.
Get Samtec CES10302GSRA today—designed for high reliability and excellent electrical performance in industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC CES10302GSRA?
You can click on the BUY or RFQ button to purchase CES10302GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10302GSRA?
You can download the CES10302GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10302GSRA?
SAMTEC
