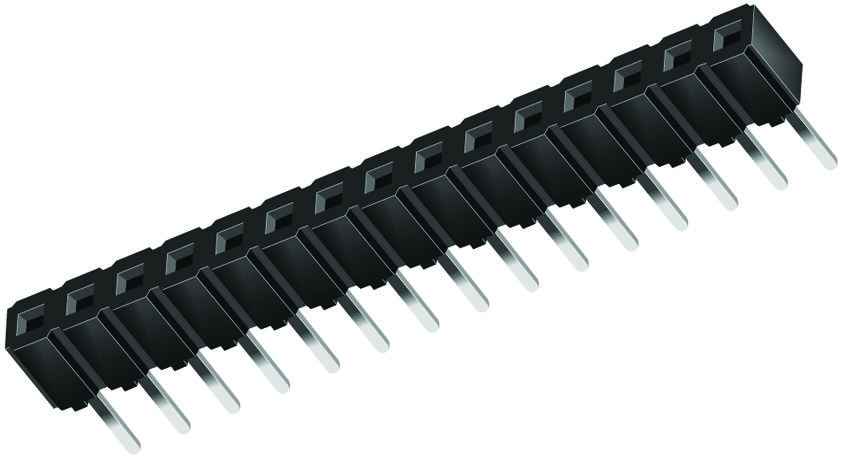

SAMTEC CES10302SS Low-Profile Socket Strip
Low-profile socket strips designed for high-density connections in electronic applications. Crafted with phosphor bronze contacts with gold or tin plating for optimal conductivity and corrosion resistance. Featuring insulator material in black G.F. polyester, these sockets support operating temperatures from -55°C to +125°C, with a voltage rating of 400-406 VAC. They mate with CES and DRE series, offering reliable insertion depths of approximately 2.16 mm to 2.92 mm. Suitable for applications requiring precise, durable, and space-efficient interconnections in manufacturing and electronic systems.
SAMTEC CES10302SS Low-Profile Socket Strip Specifications:
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel, Matte Tin on tail
- Current Rating: 5.2 A per pin (SLW), 5.5 A per pin (CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Insertion Depth: 2.16 mm (0.085 inches) to 2.92 mm (0.115 inches) for SLW, 2.62 mm (0.103 inches) to 3.60 mm (0.142 inches) for CES
- Style: Single Row, Style -02 only
- Lead-Free Solderable: No, Lead Wave only
- Compatibility: Mates with CES and DRE series, suitable for high-density electronic systems
- Application: Electric connectors, electronic assembly, manufacturing, space-saving interconnects
Buy the Buy Samtec Low-Profile Socket Strips Part Number CES10302SS Online
Enhance your electronic assemblies with the high-quality low-profile socket strips from Samtec. Featuring robust phosphor bronze contacts with gold or tin plating, these sockets support operating temperatures from -55°C to +125°C and voltage ratings up to 406 VAC. With precise insertion depths and compatibility with various series, they are ideal for space-constrained, high-density electronic systems, ensuring durability, reliability, and efficient electrical connection in manufacturing, automation, and electronic device applications.
Buy Samtec CES10302SS now and experience unmatched reliability and space-efficient performance for your electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC CES10302SS?
You can click on the BUY or RFQ button to purchase CES10302SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10302SS?
You can download the CES10302SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10302SS?
SAMTEC
