SAMTEC CES10501GS Low Profile Connector
The CES10501GS is a high-performance low-profile connector featuring a black G.F. polyester insulator and phosphor bronze contacts plated with Au or Sn over 50 micro-inch Ni. Designed for reliable electrical connections, it supports a voltage rating of 406 VAC, operating between -55°C and +125°C with gold plating. The connector's compact design offers an insertion depth of approximately 0.085" to 0.115" and a contact resistance of 10 mΩ, suitable for demanding industrial applications requiring durability and precision.
SAMTEC CES10501GS Low Profile Connector Specifications:
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Voltage Rating: 406 VAC
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.085" to 0.115" (SLW), 0.103" to 0.160" (CES)
- Pull-Out Force: 1.67 N (0.37 lbf) average
- Contact Current Rating: 5.2 A per pin (SLW), 5.5 A per pin (CES)
- Number of Pins per Row: varies with model, e.g., CES-115-01-T-S has 10
- Certifications: RoHS compliant

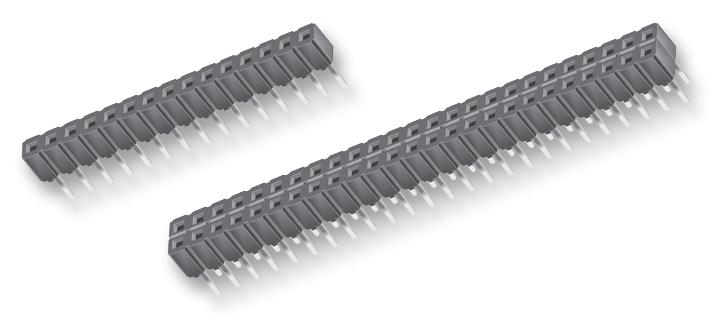

Buy the Buy Samtec Low Profile Connector Part Number CES10501GS Online
Purchase the Samtec CES10501GS connector online today for high-quality performance in industrial electronics. Featuring gold or tin plating, it ensures reliable connections with a voltage rating of 406 VAC and temperature range up to 125°C. Its compact size with inset depths of 0.085" to 0.115" makes it ideal for space-constrained environments, whether in automation, control panels, or electronic systems. Enjoy fast shipping and exceptional support when you buy online now.
Buy Samtec CES10501GS now and experience unmatched electrical reliability and compact design for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC CES10501GS?
You can click on the BUY or RFQ button to purchase CES10501GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10501GS?
You can download the CES10501GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10501GS?
SAMTEC
