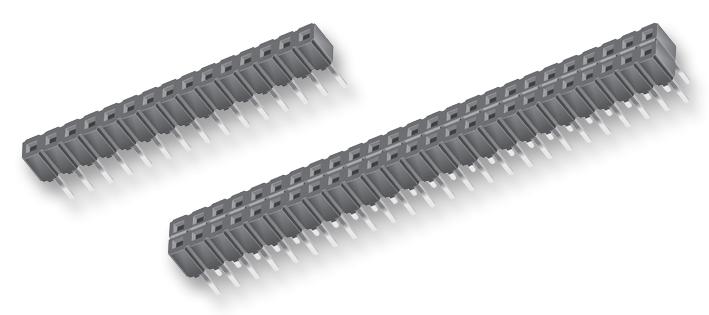

SAMTEC CES10502TSRA Micro Connector
This high-quality electrical connector features a low profile design with black polyester insulator material and phosphor bronze contacts plated with gold or tin. It offers a current rating of 5.2 A per pin and a voltage rating up to 406 VAC, suitable for demanding industrial applications. The connector operates within a temperature range of -55°C to +125°C, with low contact resistance of 10 mΩ. It provides insertion depths from 2.16 mm to 2.92 mm, designed for reliable performance. Ideal for compact electronic assemblies requiring durable, high-performance connections.
SAMTEC CES10502TSRA Micro Connector Specifications:
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2 A per pin
- Voltage Rating: 406 VAC
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.16 mm to 2.92 mm
- Material: Gold or Tin plated contacts
- Pin Size: 0.64 mm (0.025") square
- Compliance: RoHS, UL Recognized
Buy the Samtec CES10502TSRA – Reliable Micro Connector for Industrial Applications
Order the Samtec CES10502TSRA micro connector online and experience high performance with reliable gold or tin-plated contacts. Its compact, low profile design ensures optimal space utilization in electronic modules. Rated at 5.2 A per pin with a voltage up to 406 VAC, it suits industrial, automation, and control systems requiring durable, precise connections. The connector operates efficiently across a broad temperature range from -55°C to +125°C and features low contact resistance for optimal electrical performance. Easy to install, this connector guarantees dependable high-quality connections for demanding electronic projects.
Get Samtec CES10502TSRA today—built for precision, high current capacity, and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CES10502TSRA?
You can click on the BUY or RFQ button to purchase CES10502TSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10502TSRA?
You can download the CES10502TSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10502TSRA?
SAMTEC
