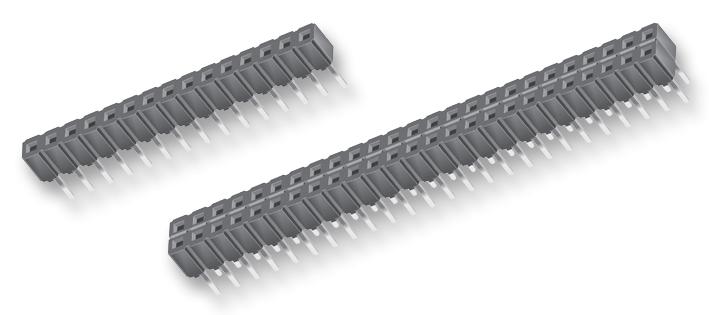

SAMTEC CES10902TS Socket Strip
The CES series from Samtec features low-profile, closed-entry socket strips designed for through-hole mounting. Compatible with various Samtec connector series like TLW, TSW, HW, and EW, these strips come in single or dual row configurations with a 2.54mm pitch and straight orientation. Made with phosphor bronze contacts plated with matte tin and a black glass-filled polyester insulator, they deliver a contact resistance of 10 milliohms and a voltage rating of 400VAC. Operating from -55°C to 105°C, they meet UL and CSA standards for industrial and electronic applications.
SAMTEC CES10902TS Socket Strip Specifications:
- Contact Material: Phosphor Bronze
- Plating: Matte Tin
- Insulator Material: Black G.F. Polyester
- Contact Resistance: 10 mΩ
- Voltage Rating: 400 VAC
- Operating Temperature Range: -55°C to +105°C
- Pitch: 2.54 mm (0.1 inch)
- Configuration: Single or dual row
- Contact System: Dual leaf
- Compatibility: Samtec connector series including TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT, HMTSW
- Standards: UL, CSA Certified
Buy the Samtec Series CES Socket Strips: CES10902TS
Enhance your electronic assembly with Samtec CES series socket strips, offering 2.54mm pitch, phosphor bronze contacts, tin plating, and high-temperature rated black polyester insulator. Perfect for through-hole mounting in industrial, equipment, or automation projects. These socket strips are compatible with multiple Samtec connector series, feature dual leaf contact systems, and meet UL and CSA safety standards, making them a reliable choice for high-quality, durable connections in demanding environments.
Order your Samtec Series CES socket strips CES10902TS today and ensure reliable, high-performance connections for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC CES10902TS?
You can click on the BUY or RFQ button to purchase CES10902TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES10902TS?
You can download the CES10902TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES10902TS?
SAMTEC
