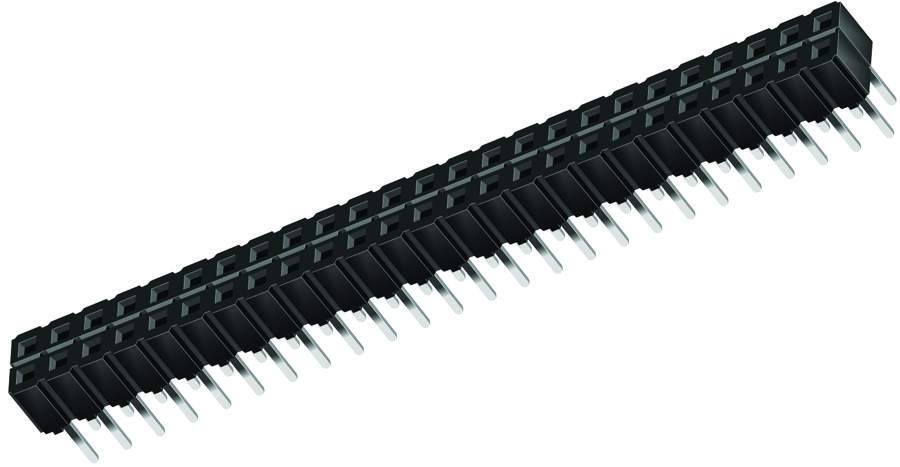

SAMTEC CES11202SD Low-Profile Socket Strip
Low-profile socket strips designed for high-density electronic connections, featuring phosphor bronze contacts with gold or tin plating for enhanced conductivity and corrosion resistance. Suitable for applications requiring operating temperatures from -55°C to +125°C with gold plating, or -55°C to +105°C with tin. The insulator is made of black G.F. polyester, ensuring durability and stability. These single-row contacts feature a compact insertion depth of approximately 2.16mm to 2.92mm, with current ratings up to 5.5A. Ideal for signal or power connections in industrial automation, control panels, and electronic assemblies, offering reliable performance in tight spaces.
SAMTEC CES11202SD Low-Profile Socket Strip Specifications:
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) or Tin over Nickel
- Lead-Free Solderable: No (Lead wave only)
- Current Rating: 5.2A at 406 VAC (SLW), 5.5A at 400 VAC (CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 2.16mm to 2.92mm (SLW), 2.62mm to 8.06mm (CES)
- Style: -02 single row, 1 contact per position
- Contact Plating: Gold or Tin, 50 µin (1.27 µm)
- Overall Dimensions vary based on style and length
- Designed as high-density, low-profile connector for electronic assemblies
- Suitable for signal or power applications in demanding environments
Buy the Buy Samtec CES11202SD Part Number CES11202SD Online
Experience reliable, compact connections with Samtec Low-Profile Socket Strips designed for space-constrained electronic assemblies. Featuring phosphor bronze contacts with optional gold or tin plating, these connectors provide high current ratings up to 5.5A and operate safely from -55°C to +125°C. Ideal for industrial automation, control panels, or electronic devices needing secure and corrosion-resistant contacts. Easy to install with a flexible insertion depth, ensuring a perfect fit in tight spaces while maintaining electrical stability and durability for demanding applications.
Get Samtec CES11202SD today—built for precision and long-lasting durability in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC CES11202SD?
You can click on the BUY or RFQ button to purchase CES11202SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES11202SD?
You can download the CES11202SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES11202SD?
SAMTEC
