SAMTEC CES11902SS Socket Strip
Low-profile socket strips designed for high reliability in electronic applications, featuring phosphor bronze contacts with gold or tin plating for enhanced conductivity and corrosion resistance. These single-row, insulation material is black G.F. polyester, suitable for operating temperatures from -55°C to +125°C. Rated at 406 VAC and 5.2 A per pin, they offer easy insertion with depths of 2.16 mm to 2.92 mm. Ideal for compact, high-performance electronic assemblies, these socket strips guarantee secure connections with lead-free options available, suitable for demanding industrial or consumer electronics.
SAMTEC CES11902SS Socket Strip Specifications:
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Ni
- Current Rating: 5.2 A per pin (SLW), 5.5 A per pin (CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 2.16 mm to 2.92 mm (SLW), 2.62 mm to 8.06 mm (CES)
- Style: Single Row, Lead-Free Solderable (Wave solder only)
- Dimensions: Dependent on model, typical tail length approximately 4.95 mm
- Certifications: Not specified, consult manufacturer for detailed recognition and compliance

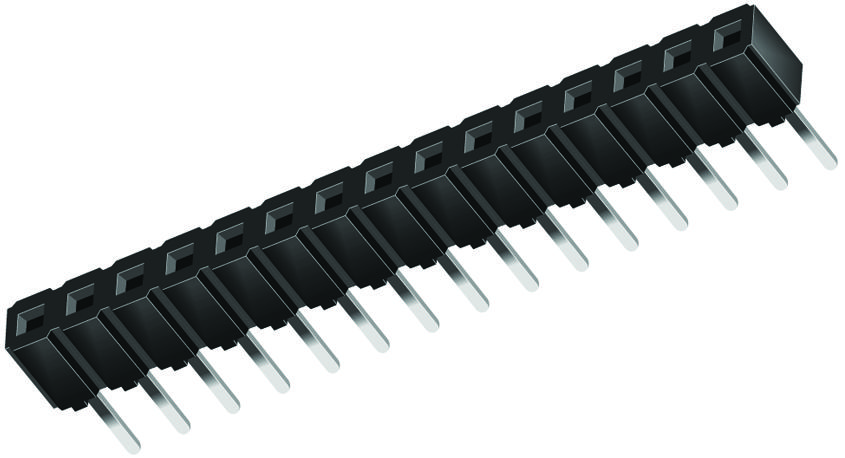

Buy the Buy Samtec Socket Strip Part Number CES11902SS Online
Purchase the Samtec CES11902SS socket strip online to ensure secure, reliable electrical connections for your compact electronic projects. Designed with high-quality phosphor bronze contacts plated with gold or tin, these single-row socket strips operate efficiently from -55°C to +125°C, with a voltage rating of 406 VAC and current capacity of 5.2 A per pin. Their easy insertion depth and lead-free solderable design make them ideal for industrial, consumer, and automation applications. Buy now to enhance your device’s durability and performance.
Buy Samtec CES11902SS now and experience unmatched reliability and high-performance connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CES11902SS?
You can click on the BUY or RFQ button to purchase CES11902SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES11902SS?
You can download the CES11902SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES11902SS?
SAMTEC
