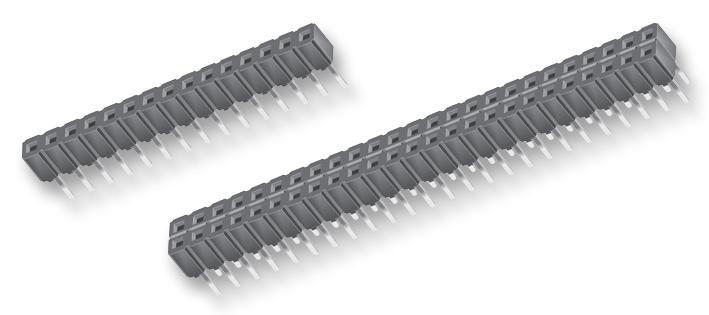

SAMTEC CES12402GS low-profile socket strips
The CES series from Samtec features low-profile, closed-entry socket strips designed for reliable through-hole mounting in various electronic assemblies. Made of black G.F. polyester, these sockets accommodate 1 to 50 contacts per row with a 2.54mm pitch, suitable for single or dual-row configurations. Contacts are phosphor bronze with gold or tin plating, capable of withstanding temperatures from -55°C to 125°C. They have a voltage rating of 400VAC, contact resistance of 10 milliohm, and feature dual leaf contact systems for high electrical performance. Certified for industrial use, they are compatible with multiple Samtec connector series, ensuring versatile application in manufacturing and automation systems.
SAMTEC CES12402GS low-profile socket strips Specifications:
- Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating Options: Au (Gold), Sn (Tin) over Ni (Nickel)
- Voltage Rating: 400 VAC
- Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohm
- Contact Type: Dual leaf contact system
- Pin Pitch: 2.54mm
- Contacts per Row: 1 to 50
- Configuration: Single or dual-row
- Compatibility: Samtec series connectors including TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT, HMTSW
- Standards: UL E111594, CSA
- Insertion Depth: 2.16mm to 4.92mm
- Current Rating: 5.2A per pin with gold plating, 5.5A with tin plating
Buy the Samtec Series CES Socket Strips: CES12402GS
Order the Samtec CES12402GS socket strips online today to ensure dependable connections in your industrial or automation projects. Designed with dual leaf phosphor bronze contacts and available in single or dual-row configurations, these low-profile sockets feature a 2.54mm pitch, gold or tin plating for durability, and a voltage rating of 400VAC. Made from black G.F. polyester, they withstand temperatures from -55°C to 125°C. Perfect for high-reliability, high-performance applications across various industries, enhancing your manufacturing efficiency and product durability.
Buy Samtec CES12402GS now and experience unmatched reliability and performance with high-temperature rated, low-profile socket strips for industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC CES12402GS?
You can click on the BUY or RFQ button to purchase CES12402GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES12402GS?
You can download the CES12402GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES12402GS?
SAMTEC
