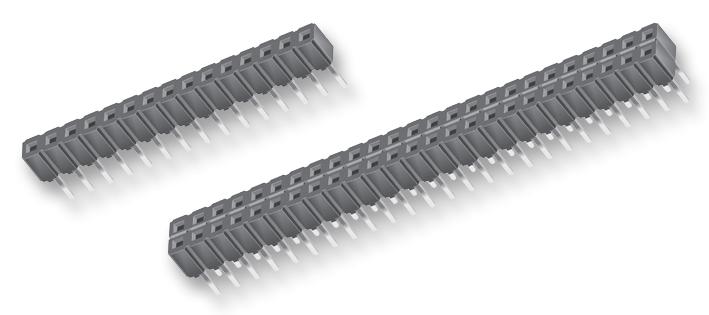

SAMTEC CES12801GD Low Profile Socket Strip
The SAMTEC CES series socket strips offer a low-profile solution for connecting various electronic components. These strips are designed to mate with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, and TSM connectors. They are available with gold flash or 20µ” gold plating on the contact and matte tin on the tail, ensuring excellent conductivity and durability. The operating temperature range is -55°C to +125°C with gold and -55°C to +105°C with tin. These connectors are ideal for applications requiring high-density connections and reliable performance.
SAMTEC CES12801GD Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ” Ni
- Current Rating (SLW/TSW): 5.2 A per pin
- Current Rating (TSW/CES): 5.5 A per pin
- Voltage Rating (SLW): 406 VAC
- Voltage Rating (CES): 400 VAC
- Operating Temp Range (Gold): -55°C to +125°C
- Operating Temp Range (Tin): -55°C to +105°C
- Contact Resistance: 10 mΩ
- Insertion Depth (SLW): (2.16 mm) .085" to (2.92 mm) .115"
- Insertion Depth (CES): (2.62 mm) .103" to (4.06 mm) .160"
- Insertion Force (SLW): (3.34 N) 12 oz avg.
- Insertion Force (CES): (2.22 N) 8 oz avg.
- Withdrawal Force (SLW): (1.67 N) 6 oz avg.
- Withdrawal Force (CES): (1.11 N) 4 oz avg.
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mates with: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, TSM
