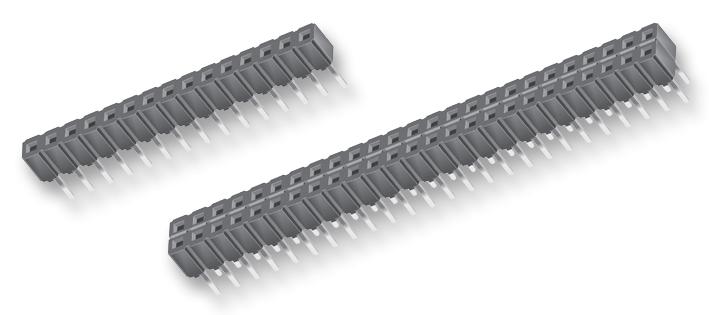

SAMTEC CES12802TSRA Low Profile Socket Strip
The SAMTEC CES-128-02-T-S-RA is a low-profile socket strip designed for applications requiring compact and reliable connectivity. It is compatible with a range of SAMTEC connectors including TLW, TSW, MTLW, and MTSW. Constructed with a phosphor bronze body and featuring gold flash plating on the contact and matte tin plating on the tail, this strip offers excellent conductivity and solderability. It is suitable for applications in telecommunications, data acquisition, and industrial automation where space is limited and high-performance connections are required. The strip supports a current rating of 5.5 A per pin and operates within a temperature range of -55°C to +125°C with gold plating.
SAMTEC CES12802TSRA Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ” Ni
- Current Rating (SLW/TSW): 5.2 A per pin
- Current Rating (TSW/CES): 5.5 A per pin
- Voltage Rating (SLW): 406 VAC
- Voltage Rating (CES): 400 VAC
- Operating Temp Range (Gold): -55°C to +125°C
- Operating Temp Range (Tin): -55°C to +105°C
- Contact Resistance: 10 mΩ
- Insertion Depth (SLW): (2.16 mm) .085" to (2.92 mm) .115"
- Insertion Depth (CES): (2.62 mm) .103" to (4.06 mm) .160"
- Insertion Force (SLW): (3.34 N) 12 oz avg.
- Insertion Force (CES): (2.22 N) 8 oz avg.
- Withdrawal Force (SLW): (1.67 N) 6 oz avg.
- Withdrawal Force (CES): (1.11 N) 4 oz avg.
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mates With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, TSM
