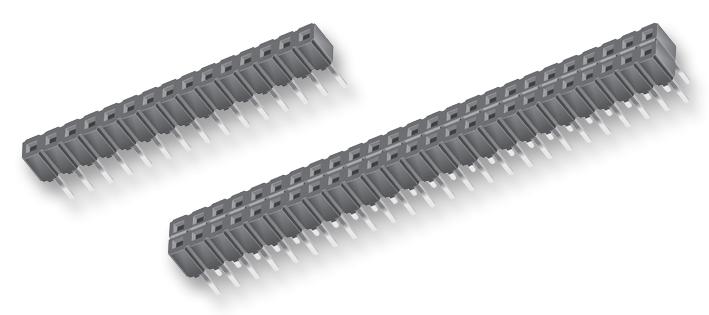

SAMTEC CES13202GS Low Profile Socket Strip
The SAMTEC CES series low profile socket strips are designed for reliable connections in edge card applications. These strips feature black G.F. Polyester insulators and phosphor bronze contacts with plating options including gold flash over nickel or matte tin. They are compatible with a range of mating connectors like TLW, TSW, MTLW, MTSW, and others. With a current rating of 5.5 A per pin and voltage rating up to 400 VAC, these connectors are suitable for demanding industrial environments. They operate within a temperature range of -55°C to +125°C (with gold plating) and are RoHS compliant, offering a secure and environmentally responsible connection solution.
SAMTEC CES13202GS Low Profile Socket Strip Specifications:
- Material: Insulator: Black G.F. Polyester, Contact: Phosphor Bronze
- Plating: Au or Sn over 50µ” Ni (Gold Flash or Matte Tin)
- Current_Rating: 5.2 A per pin (SLW), 5.5 A per pin (CES)
- Voltage_Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating_Temperature: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact_Resistance: 10 mΩ
- Insertion_Depth_SLW: (2.16 mm) .085" to (2.92 mm) .115"
- Insertion_Depth_CES: (2.62 mm) .103" to (4.06 mm) .160"
- Insertion_Force_SLW: (3.34 N) 12 oz avg.
- Insertion_Force_CES: (2.22 N) 8 oz avg.
- Withdrawal_Force_SLW: (1.67 N) 6 oz avg.
- Withdrawal_Force_CES: (1.11 N) 4 oz avg.
- RoHS: Compliant
- Lead_Free: Solderable (Wave only)
Buy the CES-132-02-G-S SAMTEC Low Profile Socket Strip | myMectronic
Purchase the SAMTEC CES-132-02-G-S socket strip securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC CES13202GS?
You can click on the BUY or RFQ button to purchase CES13202GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES13202GS?
You can download the CES13202GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES13202GS?
SAMTEC
