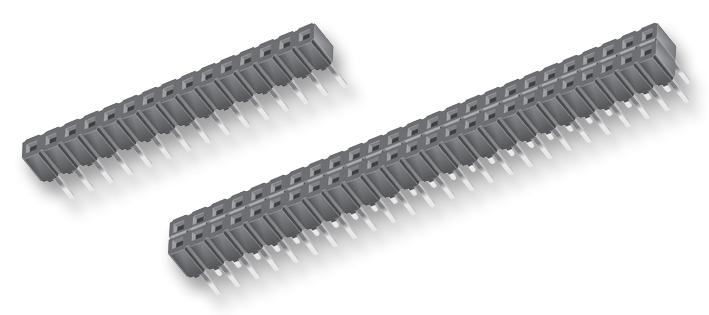

SAMTEC CES13402TS Socket Strip Connectors
The CES series from Samtec features low-profile, closed-entry socket strips for through-hole mounting, compatible with multiple Samtec series. With a 2.54mm pitch, available in single or dual rows, they are designed for reliable electrical connection with dual leaf phosphor bronze contacts plated with matte tin. Rated for 400VAC and operating from -55°C to 105°C, these connectors have a contact resistance of 10 milliohms, made of black glass-filled polyester insulator, and meet UL and CSA standards. Ideal for industrial applications requiring durable, high-quality interconnects.
SAMTEC CES13402TS Socket Strip Connectors Specifications:
- Material: Phosphor bronze contacts with matte tin plating
- Insulator Material: Black glass-filled polyester
- Pitch: 2.54mm
- Voltage Rating: 400VAC
- Operating Temperature Range: -55°C to 105°C
- Contact Resistance: 10 milliohms
- Number of Rows: Single or dual
- Applicable Series: TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT, HMTSW
- Certification: UL E111594, CSA
Buy the Buy Samtec CES Series Part Number CES13402TS Online
Discover the Samtec CES series socket strip connectors with a 2.54mm pitch, dual leaf phosphor bronze contacts, rated for 400VAC, and suitable for a wide temperature range. These reliable, UL and CSA certified connectors are perfect for industrial electronic applications, providing durable and efficient electrical connections. Easy to install for through-hole mounting, available in single or dual-row configurations, ensuring flexibility for your design needs. Purchase online today for fast delivery and superior quality.
Order your Samtec CES series connector strip CES13402TS today and ensure reliable, high-quality connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC CES13402TS?
You can click on the BUY or RFQ button to purchase CES13402TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES13402TS?
You can download the CES13402TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES13402TS?
SAMTEC
