SAMTEC CES14001GD Low Profile Connector
The CES series from Samtec offers low-profile, closed-entry socket strips designed for through-hole mounting. Featuring a 2.54mm pitch spacing, these connectors support 1 to 50 contacts per row in single or dual row configurations. Made from black G.F. polyester insulators and phosphor bronze contacts, they are gold or tin-plated with a 50μ
SAMTEC CES14001GD Low Profile Connector Specifications:
- Pitch Spacing: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over 50μ" Nickel
- Insulator Material: Black G.F. Polyester
- Voltage Rating: 400 VAC
- Contact Resistance: 10 milliohms
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Number of Contacts: 1 to 50 per row
- Configuration: Single or dual row
- Orientation: Straight
- Support standards: UL, CSA
- Contact System: Dual leaf
- Insterion Depth: 2.16 mm to 2.92 mm for SLW, 2.62 mm to 4.08 mm for CES
- Insertion Force: 3.34 N on average for SLW, 2.22 N for CES
- Withdrawal Force: 1.67 N for SLW, 1.11 N for CES

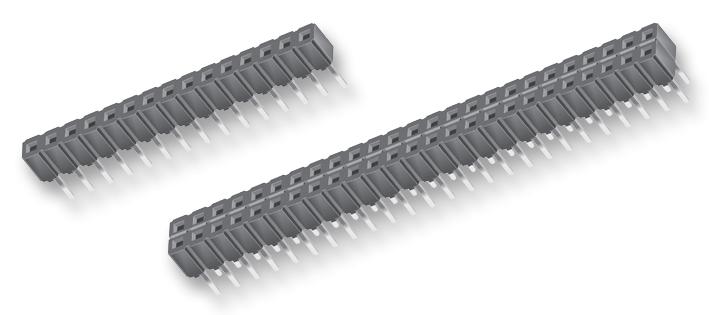

Buy the Samtec CES – Reliable Low Profile Connectors for Industrial Applications
Secure your circuit connections with the Samtec CES series low-profile connector strips. Designed for through-hole mounting, supporting up to 50 contacts with precise 2.54mm pitch spacing. Made from durable black G.F. polyester insulators and phosphor bronze contacts, they are gold or tin-plated for optimal conductivity and corrosion resistance. Supporting voltage ratings up to 400VAC and operating temperatures from -55°C to +125°C, these connectors feature dual leaf contact systems ensuring reliable electrical connections. Perfect for automation, control panels, and industrial equipment, these connectors meet UL and CSA standards for safety and quality. Purchase online today for dependable performance.
Get Samtec CES series connectors today—built for reliable connections and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC CES14001GD?
You can click on the BUY or RFQ button to purchase CES14001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CES14001GD?
You can download the CES14001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CES14001GD?
SAMTEC
