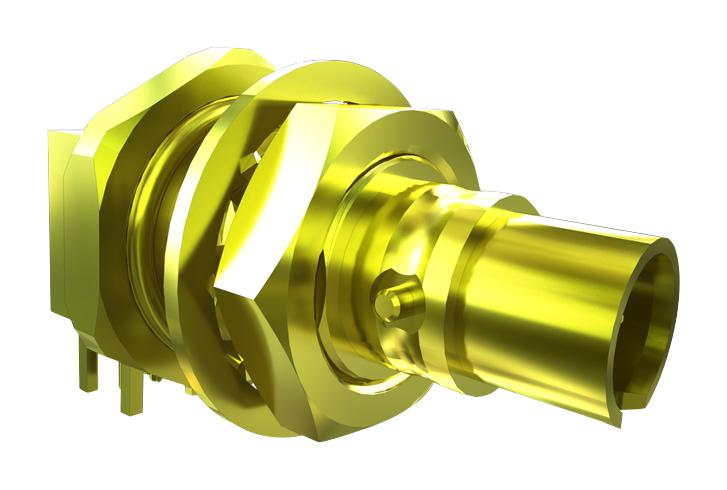

SAMTEC CJTTPHHRATH1 RF Connector
The product is a high-performance RF connector designed for reliable signal transmission in frequencies up to 4GHz. Constructed with phosphor bronze and brass contacts, it features PTFE insulators for minimal signal loss, and a PVC-jacketed shielded twisted pair cable with 28 AWG. Operating within -20°C to +105°C, it meets RoHS compliance for environmentally friendly manufacturing. The connector provides 200 VAC working voltage, supports differential signal routing, and is compatible with various mating configurations including right-angle plugs and bulkhead jacks, ideal for advanced RF applications requiring durability and precision.
SAMTEC CJTTPHHRATH1 RF Connector Specifications:
- Outer Contact Material: Phosphor Bronze (Plug), Brass (Jack)
- Center Contact Material: Phosphor Bronze (Terminals), BeCu (Sockets)
- Insulator Material: PTFE
- Operating Temperature: -20°C to +105°C
- Voltage Rating: 200 VAC
- Frequency Range: 0-4GHz
- Impedance: 100Ω
- Cable: 28 AWG shielded twisted pair
- Jacket Material: PVC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Shell Material: Brass
- Working Voltage: 200 VAC
- Connector Types: Right-angle Plug, Bulkhead Jack, Terminal, with various end options
- Overall Dimensions: Approximately 0.76 inches diameter, length varies with configuration
- Applicable for high-frequency RF systems, communication equipment, and test setups
Buy the Samtec Series C28S RF Connector: CJTTPHHRATH1
Order the Samtec CJTTPHHRATH1 RF connector online now to ensure reliable high-frequency signal transmission up to 4GHz. Crafted with durable materials like phosphor bronze and brass contacts, and PTFE insulators, this connector offers excellent performance, environmental compliance, and easy installation for professional RF systems. Its shielded twisted pair cable with 28 AWG enhances noise immunity, while the 200 VAC working voltage ensures safety. Perfect for communication and test equipment—purchase today for quality and long-lasting performance.
Get Samtec CJTTPHHRATH1 today—built for precision, durability, and high-frequency signal integrity in RF applications.
Frequently Asked Questions
Where can I buy SAMTEC CJTTPHHRATH1?
You can click on the BUY or RFQ button to purchase CJTTPHHRATH1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CJTTPHHRATH1?
You can download the CJTTPHHRATH1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CJTTPHHRATH1?
SAMTEC
