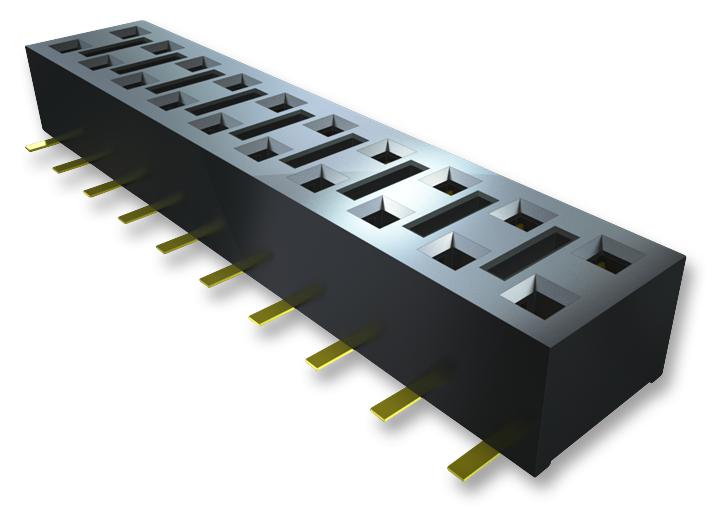

SAMTEC CLH102FDDV Connector Module
The CLH series is a high-performance connector line featuring a compact design suitable for PCB applications. Made with phosphor bronze contacts and gold or tin plating options, these connectors operate within -65°C to +125°C, ensuring reliable performance across diverse industrial environments. They support multiple insertions and are RoHS compliant, offering durability with up to 100 cycles. The connectors are ideal for high-density electronic assemblies, providing low contact resistance, easy integration, and secure mating features for efficient electrical connections in demanding applications.
SAMTEC CLH102FDDV Connector Module Specifications:
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Operating Temperature Range: -65°C to +125°C with Gold, -65°C to +105°C with Tin
- Insertion Depth: 2.67mm (0.105") to 3.43mm (0.135")
- Insertion Force: 4.00z (1.11 N) average
- Withdrawal Force: 280 grams (7.11 N)
- Normal Force: 50 grams (0.48 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Minimum 0.10mm
- Physical Dimensions: Length varies with model, typical contact length approximately 2.54mm to 6.50mm
- Temperature Rating: -65°C to +125°C
- Certifications: RoHS
Buy the Samtec CLH102FDDV – Reliable High-Density PCB Connector Module
Order the Samtec CLH series connector module online today to ensure high durability, precise electrical contact, and optimal performance in your electronic projects. These connectors, with spring-loaded contacts and multiple plating options, support up to 100 insertion cycles, offering excellent value for sensitive electronic devices. RoHS compliant and lead-free, they provide environmental safety and compliance for manufacturing needs. With flexible insertion depths, low contact resistance, and secure mating, these connectors are ideal for high-density, high-performance PCB assemblies requiring reliable connections in demanding industrial and consumer electronics environments.
Buy Samtec CLH-110-F-D-DV connectors now and experience unmatched reliability and high-density performance for complex electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CLH102FDDV?
You can click on the BUY or RFQ button to purchase CLH102FDDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLH102FDDV?
You can download the CLH102FDDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLH102FDDV?
SAMTEC
