SAMTEC CLH103FDBE PCB Connector
The CLH-110-F-D-DV is a high-quality connector series designed for PCB applications, featuring a phosphor bronze contact material with gold and tin plating options. Operating efficiently between -65°C to +125°C, it offers low contact resistance and reliable insertion/extraction forces suitable for automated assembly. The connector supports multiple lengths from 2.54mm to 6.50mm, with maximum cycle durability of 100 insertions, RoHS compliance, and lead-free processing. Ideal for precise electronic connections in demanding industrial, automotive, and consumer electronics environments.
SAMTEC CLH103FDBE PCB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold and Tin options, 50p" (1.27um) Ni STC
- Operating Temp Range: -65°C to +125°C with Gold, -65°C to +105°C with Tin
- Insertion Depth: 2.54mm to 6.50mm (0.100" to 0.256")
- Insertion Force: 4.00z (1.11N) average
- Normal Force: 50 grams (0.48N)
- Withdrawal Force: 280 grams maximum
- Max Cycles: 100 for auto placement
- RoHS Compliant: Yes
- Processing: Lead-Free, RoHS compliant
- SMT Lead Coplanarity: Minimum 0.10mm
- Dimensions vary with options, manufactured for technical precision
- Suitable for PCB mounting with multiple length, style, and plating options
- Note: Some lengths, styles, and options are non-standard and non-returnable

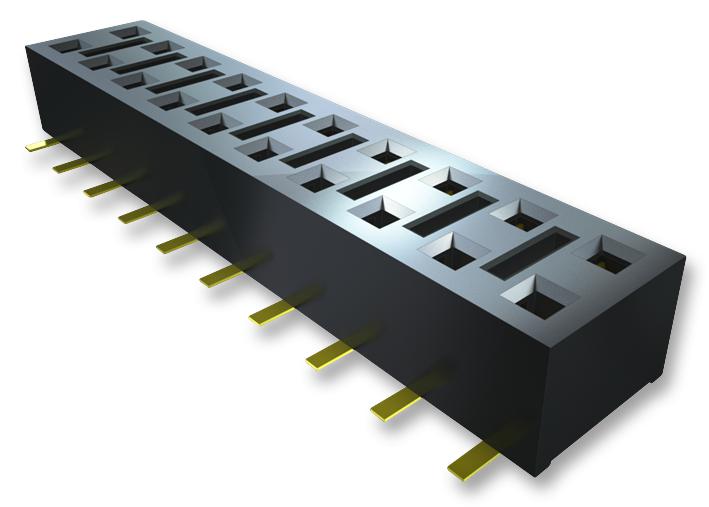

Buy the Samtec Series CLH Connector: CLH-110-F-D-DV
Discover the Samtec CLH-110-F-D-DV PCB connector, engineered for high reliability and excellent performance in industrial electronic assemblies. Featuring robust phosphor bronze contacts with gold and tin plating options, it operates efficiently up to 125°C. Its adjustable insertion depths from 2.54mm to 6.50mm, combined with a maximum of 100 insertion cycles, ensure long-lasting durability. Ideal for automated placement and demanding environments, this RoHS-compliant connector guarantees excellent electrical conductivity, low contact resistance, and flexible options for your PCB design needs. Buy online today and enhance your electronic systems with precision components.
Get Samtec CLH-110-F-D-DV connector today—built for precision, durability, and demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC CLH103FDBE?
You can click on the BUY or RFQ button to purchase CLH103FDBE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLH103FDBE?
You can download the CLH103FDBE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLH103FDBE?
SAMTEC
