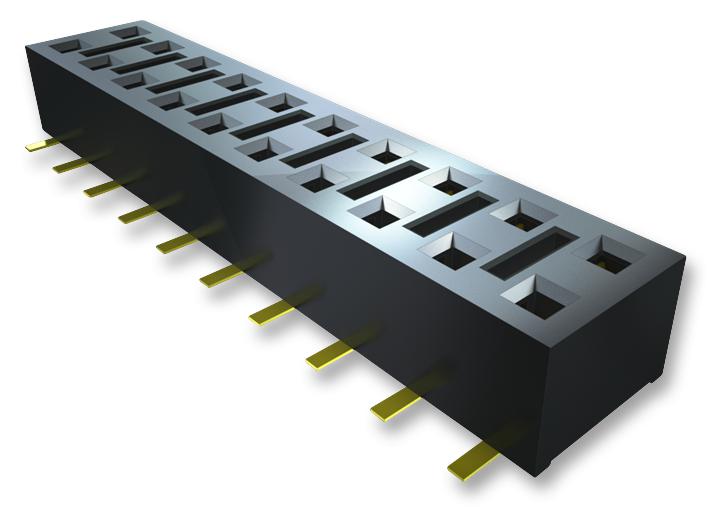

SAMTEC CLH110FDBE Electrical Connector
The CLH series contacts are precision-made electrical connectors designed for reliable PCB connections in various electronic applications. Made with high-quality phosphor bronze and plated with gold or tin, these connectors can operate efficiently from -65°C to +125°C or +105°C depending on the plating. They feature an insertion depth of 2.67mm to 3.43mm, a maximum of 100 cycles for automation, and are RoHS compliant. These connectors are suitable for high-density, multi-position PCB layouts, offering excellent electrical resistance and minimal insertion and withdrawal forces for optimal performance.
SAMTEC CLH110FDBE Electrical Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Electrical Resistance: Low contact resistance
- Operating Temperature Range: -65°C to +125°C with Gold, -65°C to +105°C with Tin
- Insertion Depth: 2.67mm to 3.43mm
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solders: Yes
- Insertion Force: 4.00z (1.1 N)
- Withdrawal Force: 280-225 grams
- Packaged in multiple styles with non-standard options
- Processing: RoHS, Lead-Free compatible
- Minimum SMT Lead Coplanarity: 0.004 inches
Buy the Samtec Series CLH Electrical Connector Part Number CLH110FDBE
Purchase the Samtec CLH series electrical connectors online today and enjoy high-quality, durable contacts suitable for demanding electronic projects. These connectors feature high temperature operation from -65°C to +125°C, with gold or tin plating for excellent conductivity and corrosion resistance. Designed for PCB assembly, they support up to 100 insertion cycles, ensuring long-term reliability. Easy to install with minimal force, these connectors are RoHS compliant, lead-free, and perfect for compact, high-density electronic systems, providing secure connections for various industrial and commercial applications.
Buy Samtec CLH-110-F-D-DV connectors now and experience unmatched reliability and performance in high-density PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC CLH110FDBE?
You can click on the BUY or RFQ button to purchase CLH110FDBE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLH110FDBE?
You can download the CLH110FDBE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLH110FDBE?
SAMTEC
