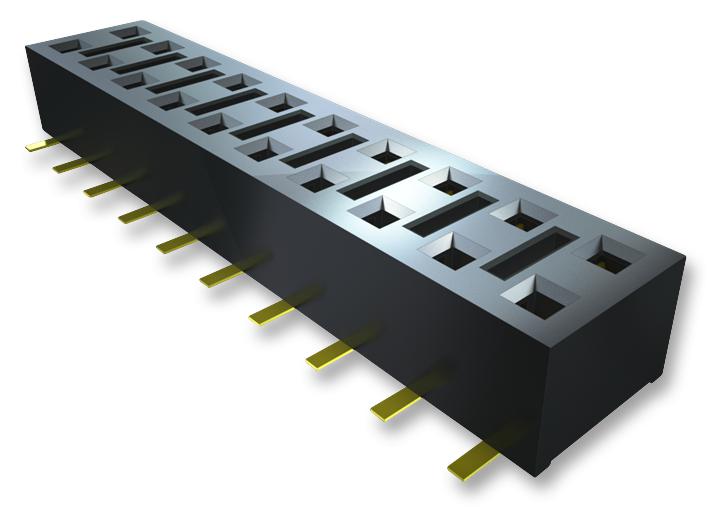

SAMTEC CLH112FDBE High-Density PCB Connector
The CLH Series connector offers reliable PCB connections with options for gold or tin plating, suitable for temperatures between -65°C and +125°C. Made from high-quality phosphor bronze, it features easy top or bottom insertion, with a standard insertion depth of approximately 2.67mm to 3.43mm. Designed for durability, it supports up to 100 cycles with a maximum withdrawal force of 280 grams, meeting RoHS compliance. Ideal for compact, high-performance electronic assemblies requiring robust and versatile pin connectivity.
SAMTEC CLH112FDBE High-Density PCB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin (options available)
- Operating Temp Range: -65°C to +125°C with Gold, -65°C to +105°C with Tin
- Insertion Depth: 2.67mm to 3.43mm
- Insertion Force: 4.00 oz (1.1 N) average
- Withdrawal Force: 280 grams maximum
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solders: Yes
- SMT Lead Coplanarity: Minimum 0.010mm
- Contact Resistance: Low contact resistance specified
- Dimensions: Compact design suitable for standard PCB layouts
Buy the Samtec Series CLH High-Density Connector: CLH112FDBE
Experience reliable, durable high-density PCB connections with the Samtec CLH Series. Designed with high-quality phosphor bronze contacts, it supports operating temperatures from -65°C to +125°C and features gold or tin plating options for excellent corrosion resistance. The connector supports up to 100 insertion cycles, ensuring long-lasting performance in demanding electronic applications. Its compact design fits standard PCB layouts, making assembly quick and efficient. Purchase the CLH112FDBE online now to enhance your electronic assemblies with trusted connectivity solutions from Samtec.
Get Samtec CLH112FDBE today—built for precision, durability, and high-performance PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC CLH112FDBE?
You can click on the BUY or RFQ button to purchase CLH112FDBE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLH112FDBE?
You can download the CLH112FDBE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLH112FDBE?
SAMTEC
