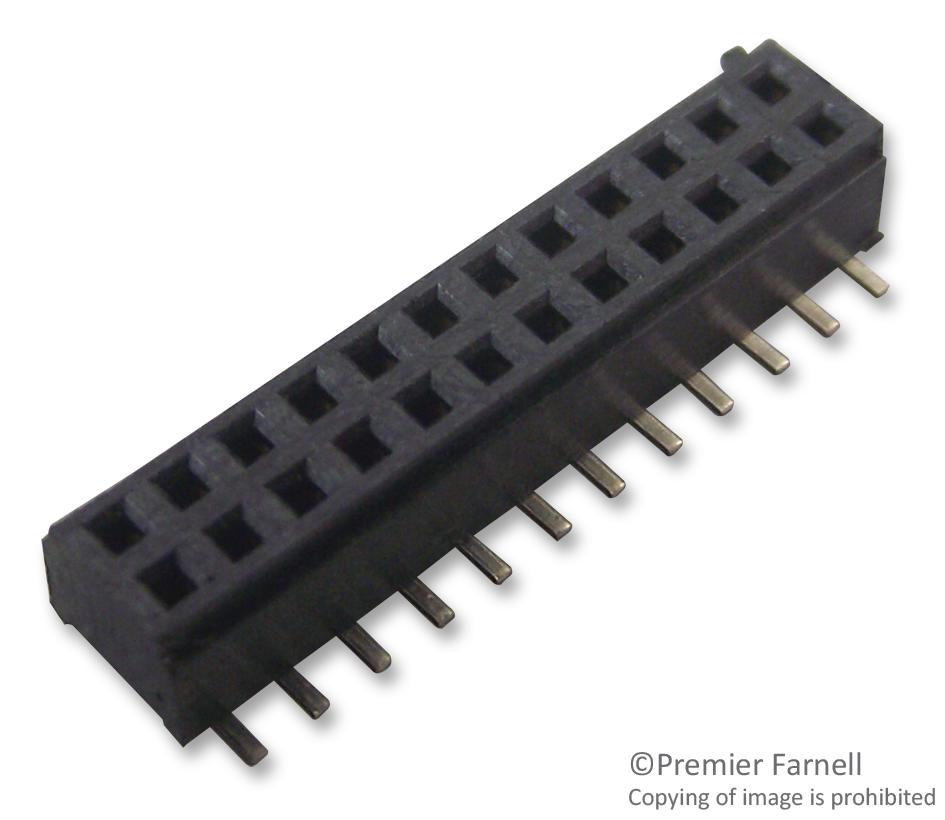

SAMTEC CLM11202LD Micro Socket Connector
The SAMTEC CLM-112-02-L-D is a micro socket connector engineered for demanding applications requiring high reliability and durability. It boasts a robust design with gold flash plating on the contact for excellent signal transmission and a matte tin tail for secure solderability. Ideal for applications in telecommunications, data networking, and industrial automation, this connector offers extended life and high mating cycles. Samtec's commitment to quality ensures consistent performance and dependable connectivity.
SAMTEC CLM11202LD Micro Socket Connector Specifications:
- No. Pins: CLM 1 02 D
- Plating Options: CLM: Au or Sn over 50 µ" Ni; MLE: Au over 10 µ" Ni
- Mates with: FTM, FTMH, MW
- Insulator Material: Black LCP
- Contact Material: CLM: Phosphor Bronze; MLE: BeCu
- Current Rating (CLM/FTM): 2.8 A per pin (2 pins powered)
- Current Rating (MLE/FTM): 2.9 A per pin (2 pins powered)
- Operating Temp Range: -55 °C to +125 °C
- Max Cycles: CLM: 100 with 10 µ" Au
- Voltage Rating: MLE: 310 VAC
- Insertion Depth (CLM): (1.40 mm) .055" min., Bottom Entry = (2.41 mm) .095" min.
- Insertion Depth (MLE): (1.63 mm) .064" to (3.18 mm) .125"
- Normal Force: CLM: 40 grams (0.39 N) average
- SMT Lead Coplanarity: (0.10 mm) .004" max (02-25); (0.15 mm) .006" max (26-50)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the CLM-112-02-L-D SAMTEC Micro Socket Connector | myMectronic
Securely purchase the SAMTEC CLM-112-02-L-D micro socket connector online for reliable and efficient component sourcing.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC CLM11202LD?
You can click on the BUY or RFQ button to purchase CLM11202LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLM11202LD?
You can download the CLM11202LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLM11202LD?
SAMTEC
