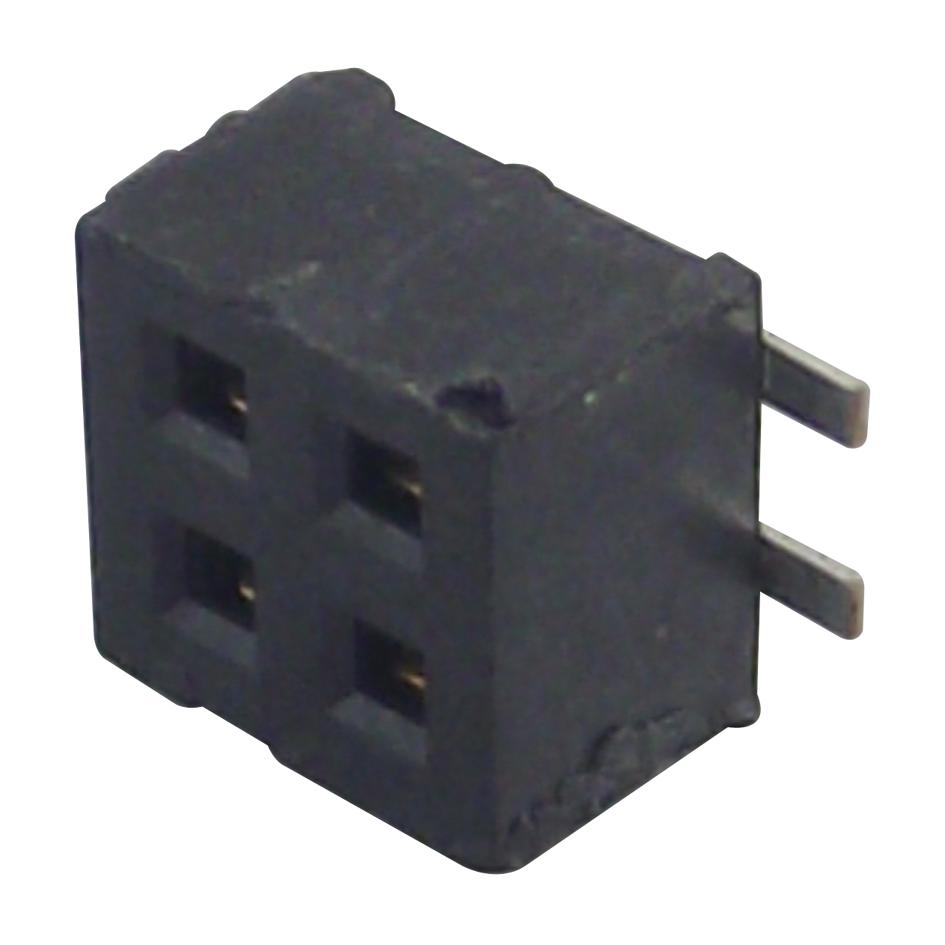

SAMTEC CLP10202FD Dual Wipe Socket Strip
The CLP series from Samtec offers high-reliability, low-profile dual wipe socket strips designed for surface mounting. Featuring a 1.27mm pitch, they support double-row configurations from 2 to 50 contacts per row, ideal for industrial and automation applications. Made with phosphor bronze contacts and a black liquid crystal polymer insulator, these sockets operate over temperatures from -55°C to 125°C. Rated for 240VAC and 340VDC, with gold flash plating, they ensure optimal electrical performance and durability in rugged environments.
SAMTEC CLP10202FD Dual Wipe Socket Strip Specifications:
- Pitch: 1.27 mm
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" (1.27 μm)
- Current Rating: 4A per pin
- Voltage Rating: 240VAC, 340VDC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm (0.055"), Bottom Entry 2.41 mm (0.095"), DH Entry 2.34 mm (0.091") to 2.67 mm (0.105")
- Normal Force: 60 grams (0.59 N)
- Number of Cycles: 100 with 10 μ" (0.25 μm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatibility: Supports surface mounting, pass-through applications, and various pin configurations
- Features: Rugged, high-reliability, dual wipe, low-profile design suitable for industrial environments
Buy the Samtec CLP10202FD – Reliable Dual Wipe Socket for Industrial Applications
Enhance your industrial and automation projects with the rugged and reliable dual wipe socket strips from Samtec. Designed for surface mounting, these 1.27 mm pitch connectors accommodate up to 50 contacts per row, providing excellent electrical performance in demanding environments. Made with phosphor bronze contacts and a durable liquid crystal polymer insulator, they operate efficiently within a temperature range of -55°C to 125°C. Rated for high voltage and current, with gold flash plating, they ensure long-lasting, dependable connectivity for your PCB connections.
Buy Samtec CLP10202FD now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC CLP10202FD?
You can click on the BUY or RFQ button to purchase CLP10202FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10202FD?
You can download the CLP10202FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10202FD?
SAMTEC
