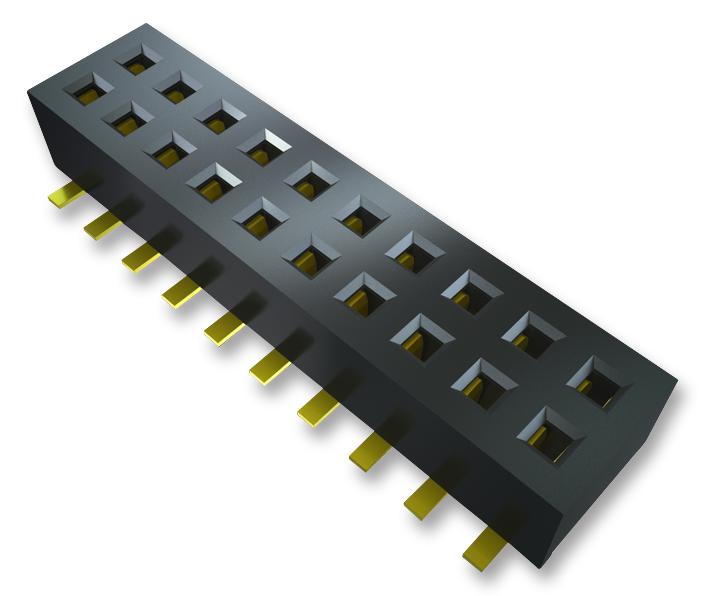

SAMTEC CLP10502FDHTR dual-wipe socket connector
The CLP series from Samtec features Tiger Claw low-profile, rugged, and reliable dual-wipe socket strip connectors designed for surface mounting and industrial applications. With a 1.27mm pitch spacing, these connectors support from 2 up to 50 contacts per row and are available in horizontal mounting options (-DH). Constructed with phosphor bronze contacts and black liquid crystal polymer insulators, they operate within a temperature range of -55°C to 125°C, rated for 240VAC and 340VDC, and comply with UL standards. The gold flash plating ensures durability and corrosion resistance, making them ideal for high-reliability electronics and pass-through applications.
SAMTEC CLP10502FDHTR dual-wipe socket connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 u" (1.27 mm)
- Current Rating: 4A per pin
- Voltage Rating: 280 VAC / 395 VDC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm (.055"), Bottom Entry 2.41 mm (.095"), DH Entry 2.34 mm (.091") to 2.67 mm (.105")
- Normal Force: 60 grams (0.59 N)
- Maximum Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004"), 0.15 mm (.006")
- Number of Positions: 2 to 50 per row
- Mounting Options: Horizontal with pass-through and bottom entry options
- Dimensions: 1.27mm pitch, support multiple contact counts, universal mounting options
Buy the Buy Samtec CLP Series Part Number CLP-107-02-F-D-P Online
Purchase the Samtec CLP series dual-wipe socket connectors online today to ensure reliable, high-quality surface mounting connections in industrial and electronic applications. These connectors feature a 1.27mm pitch with support for 2 to 50 contacts per row, constructed with durable phosphor bronze contacts and black liquid crystal polymer insulators. Designed to operate within -55°C to 125°C, rated for 240VAC and 340VDC, they meet UL standards and have gold flash plating for enhanced durability. Ideal for pass-through and high-reliability electronics, order now for fast, secure delivery.
Get Samtec CLP-107-02-F-D-P today—built for high-reliability and surface mounting versatility.
Frequently Asked Questions
Where can I buy SAMTEC CLP10502FDHTR?
You can click on the BUY or RFQ button to purchase CLP10502FDHTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10502FDHTR?
You can download the CLP10502FDHTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10502FDHTR?
SAMTEC
