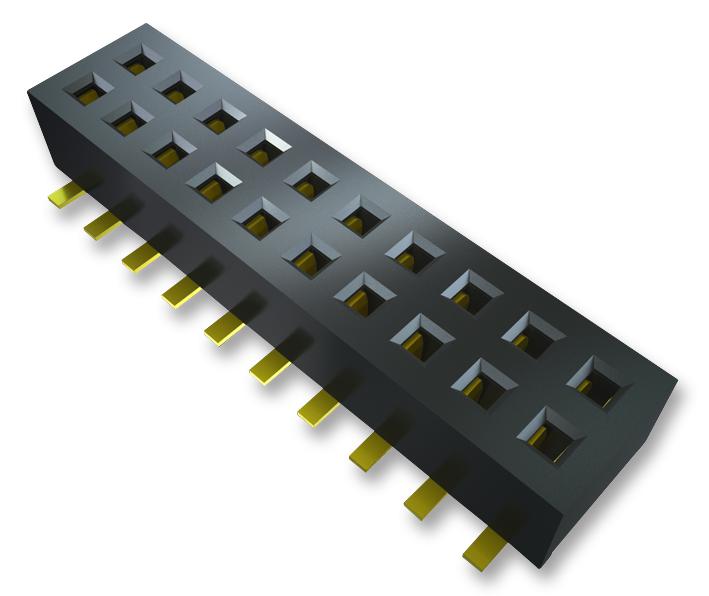

SAMTEC CLP10502FDTR Micro Pitch SMT Connector
The CLP-105-02-F-D-P series is a high-reliability micro pitch SMT connector designed for pass-through applications with a pitch of 1.27 mm. Constructed with Phosphor Bronze contacts and liquid crystal polymer insulators, it features Sn or Au plating, RoHS compliance, and lead-free solderability. It supports operating temperatures from -55°C to +125°C, with a contact resistance of 10 mΩ, and maximum cycle durability of 100 cycles with gold plating. Suitable for high-density board-to-board connections in industrial and electronic applications.
SAMTEC CLP10502FDTR Micro Pitch SMT Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: Top Entry 1.40 mm minimum, Bottom Entry 2.41 mm minimum, DH Entry 2.31-2.67 mm
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100 with 10 µ
- Plating
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Max 0.10 mm (0.004") to 0.15 mm (0.006")
- Suitable for pass-through and high-density applications
- Connector pitch: 1.27 mm (0.050")
- Contact Plating Options: Gold or Tin
- Row Options: Single row with various configurations
Buy the Samtec CLP-105-02-F-D-P – Reliable Micro Pitch SMT Connector for Industrial Applications
Purchase the high-reliability micro pitch SMT connector CLP-105-02-F-D-P online today for secure, low-resistance connections in industrial electronics. Featuring a 1.27 mm pitch, RoHS compliance, and option for gold or tin plating, this connector ensures durability and excellent electrical performance. Its top, bottom, and dual entry options support versatile assembly requirements, with operating temperatures from -55°C to +125°C. Buy now and enhance your electronic designs with reliable, high-quality connectivity suited for demanding industrial applications.
Order your Samtec CLP-105-02-F-D-P series high-density connector today and ensure dependable, high-performance PCB connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC CLP10502FDTR?
You can click on the BUY or RFQ button to purchase CLP10502FDTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10502FDTR?
You can download the CLP10502FDTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10502FDTR?
SAMTEC
