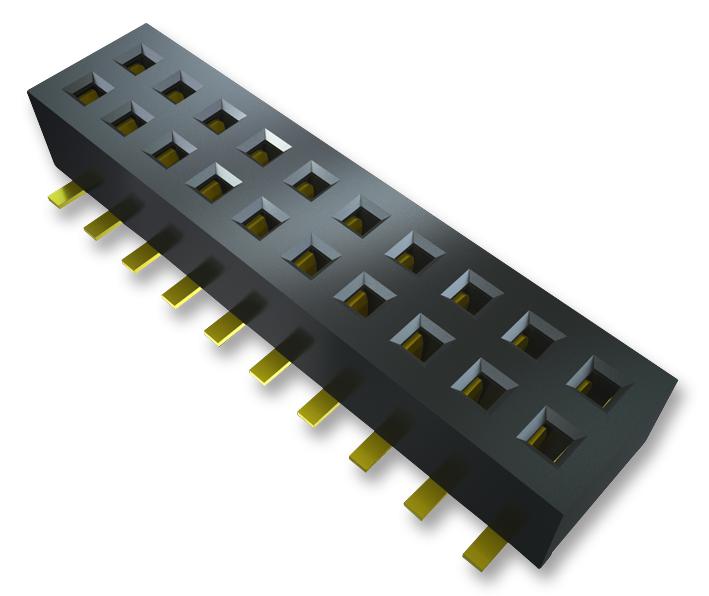

SAMTEC CLP10502GDBE Low Profile Dual Wipe Socket
The SAMTEC CLP series is a low-profile dual wipe socket designed for applications requiring high mating cycles and reliable connections. Constructed with a black liquid crystal polymer insulator and phosphor bronze contacts, these sockets offer excellent performance and durability. They are available with various plating options, including gold and tin, and are RoHS compliant. The CLP series is ideal for surface mount applications and pass-through designs, offering a robust and space-saving solution for connecting electronic components. Mates with Tiger Claw connectors.
SAMTEC CLP10502GDBE Low Profile Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" (1.27 µm) Ni
- Current Rating: 3.4 A per pin (2 pins powered)
- Voltage Rating: 280 VAC/395 VDC
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: Top Entry = (1.40 mm) .055" minimum, Bottom Entry = (2.41 mm) .095" minimum plus board thickness, DH Entry = (2.31 mm) .091" to (2.67 mm) .105"
- Normal Force: 60 grams (0.59 N) average
- Max Cycles: 100 with 10 µ" (0.25 µm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: (0.10 mm) .004" max (02-35), (0.15 mm) .006" max (36-50)
Buy the CLP-105-02-G-D-BE SAMTEC Low Profile Dual Wipe Socket | myMectronic
Purchase the SAMTEC CLP-105-02-G-D-BE socket securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC CLP10502GDBE?
You can click on the BUY or RFQ button to purchase CLP10502GDBE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10502GDBE?
You can download the CLP10502GDBE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10502GDBE?
SAMTEC
