SAMTEC CLP10602FD Dual Wipe Socket
The low-profile dual wipe socket features a black liquid crystal polymer insulator and phosphor bronze contacts with Sn or Au plating over 50 microns. It supports a current rating of 4A per pin and a voltage rating of 280 VAC / 395 VOC. Designed for high-reliability and durability, it operates in temperatures from -55°C to +125°C. This socket offers top, bottom, and via entry options with insertion depths ranging from 1.40 mm to 2.67 mm. It is RoHS compliant, lead-free, and suitable for pass-through applications, ensuring easy PCB mounting and secure connections with up to 100 cycles lifespan.
SAMTEC CLP10602FD Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 microns
- Current Rating: 4A per pin
- Voltage Rating: 280 VAC / 395 VOC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.41 mm, Via Entry 2.34 mm to 2.67 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Maximum Cycles: 100 insertions
- SMT Lead Coplanarity: 0.10 mm (0.004") to 0.15 mm (0.006")
- Dimensions: Width ~8.25 mm, Height ~4.00 mm, Diameter of mounting hole 1.27 mm (0.050")
- Suitable for pass-through or bottom entry applications with optional features for secure mounting

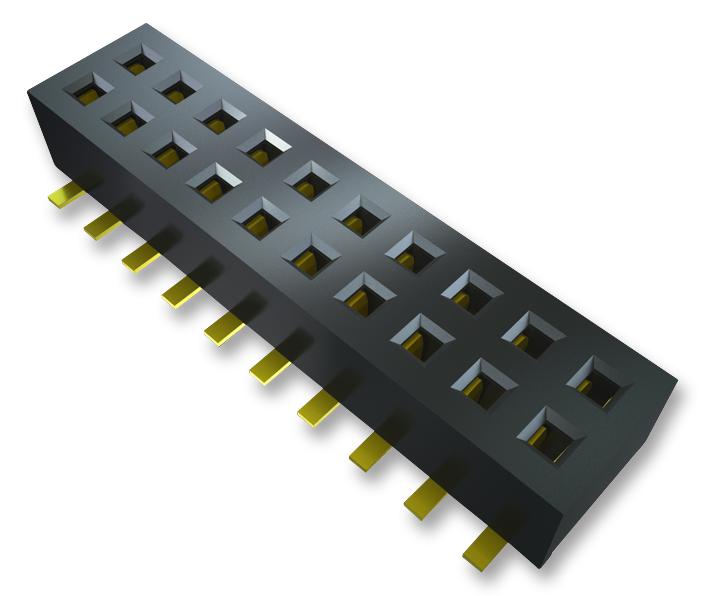

Buy the Samtec Series CLP Dual Wipe Socket: CLP-107-02-F-D-P
Enhance your electronic assembly with this high-reliability dual wipe socket featuring a low-profile design, RoHS compliance, and support for up to 4A per pin. With a temperature range of -55°C to +125°C and up to 100 insertion cycles, it offers robust performance for PCB pass-through applications. Its black liquid crystal polymer insulator and phosphor bronze contacts ensure excellent electrical contact and durability. Purchase online today to secure a dependable and easy-to-install connection solution suitable for demanding industrial and electronic projects.
Buy Samtec CLP-107-02-F-D-P low-profile dual wipe socket now and experience unmatched reliability and performance in high-reliability electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC CLP10602FD?
You can click on the BUY or RFQ button to purchase CLP10602FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10602FD?
You can download the CLP10602FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10602FD?
SAMTEC
