SAMTEC CLP10602GD Dual Wipe Socket
The low-profile dual wipe socket connector features black liquid crystal polymer insulators and phosphor bronze contacts with Sn or Au plating. It supports operating temperatures from -55°C to +125°C and is RoHS compliant with lead-free solderability. Designed for high reliability, it mates with Tiger Claw contacts, offering various pin configurations and plating options for pass-through and bottom entry applications. It ensures precise alignment with optional pins and is suitable for micro pitch applications, providing robust electrical performance for PCB mounting.
SAMTEC CLP10602GD Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" (1.27 μm)
- Current Rating: 4A per pin
- Voltage Rating: 280 VAC / 395 VOC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm; Bottom Entry 2.41 mm; DH Entry 2.34 mm to 2.67 mm
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100 with 10 μ" (0.25 μm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (max); 0.15 mm (max) for 36-50 pin sizes
- Suitable for micro pitch contacts, pass-through and bottom entry applications
- Additional options include various plating and contact configurations for high-reliability connections

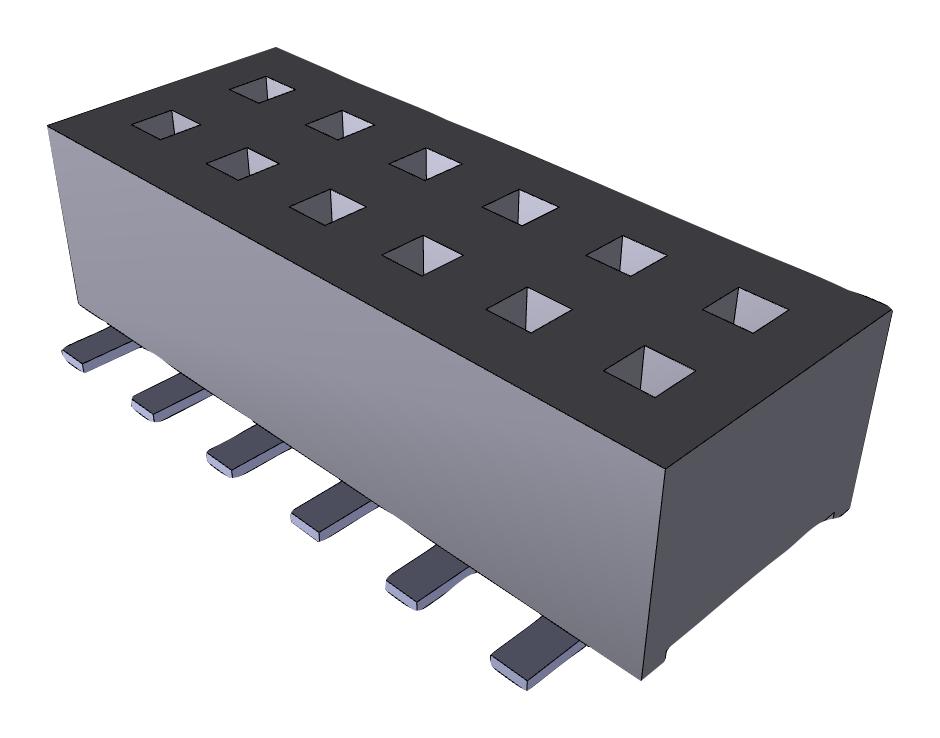

Buy the Buy Samtec CLP-107-02-F-D-P Part Number CLP-107-02-F-D-P Online
Secure your electronic assemblies with the high-reliability dual wipe socket connector. Designed for PCB applications, it offers a low-profile, RoHS compliance, and excellent temperature resistance from -55°C to +125°C. With various pin counts and plating options, this socket ensures robust electrical connections, easy assembly, and precise alignment. Suitable for pass-through and bottom entry configurations, it's ideal for high-performance, micro pitch applications demanding durability and reliability in demanding environments. Purchase online for quick, easy integration into your designs.
Buy Samtec CLP-107-02-F-D-P now and experience unmatched reliability and performance in high-density PCB connectors.
Frequently Asked Questions
Where can I buy SAMTEC CLP10602GD?
You can click on the BUY or RFQ button to purchase CLP10602GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10602GD?
You can download the CLP10602GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10602GD?
SAMTEC
