SAMTEC CLP10602LDBE Micro Pitch Socket
The product is a low-profile dual wipe socket designed for high-reliability connections in micro pitch applications. Made from black liquid crystal polymer with phosphor bronze contacts, it offers solderability with lead-free options, RoHS compliance, and a current rating of 4A per pin. Operating temperature ranges from -55°C to +125°C, with insertion depths varying by mounting style. Suitable for pass-through and bottom entry applications, it ensures secure connections with up to 100 mating cycles, making it ideal for precision electronic assemblies.
SAMTEC CLP10602LDBE Micro Pitch Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 u" (1.27 mm)
- Current Rating: 4A per pin
- Voltage Rating: 280 VAC / 395 VAC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.41 mm, DH Entry 2.34 mm to 2.67 mm
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm max (02-35), 0.15 mm max (36-50)
- Suitable for pass-through and bottom entry mounting
- Offerings include various pin and row configurations, with optional alignment pins
- Compatible with Tiger Claw contacts and micro pitch connectors

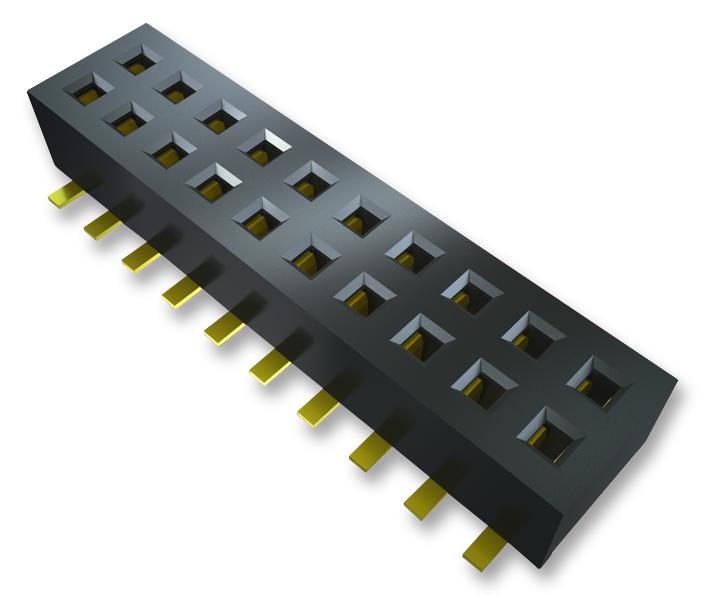

Buy the Samtec CLP-107-02-F-D P – Reliable Micro Pitch Socket for Industrial Applications
Order the Samtec CLP-107-02-F-D now to ensure secure, high-reliability connections in your electronic projects. This micro pitch socket features a low-profile design, RoHS compliance, and a current rating of 4A per pin. It is suitable for pass-through and bottom entry applications, with an operating temperature range from -55°C to +125°C. Easy to solder and assemble, it provides up to 100 mating cycles, making it perfect for demanding industrial and electronic manufacturing environments.
Get Samtec CLP-107-02-F-D today—built for precision and long-lasting durability in high-density electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CLP10602LDBE?
You can click on the BUY or RFQ button to purchase CLP10602LDBE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10602LDBE?
You can download the CLP10602LDBE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10602LDBE?
SAMTEC
