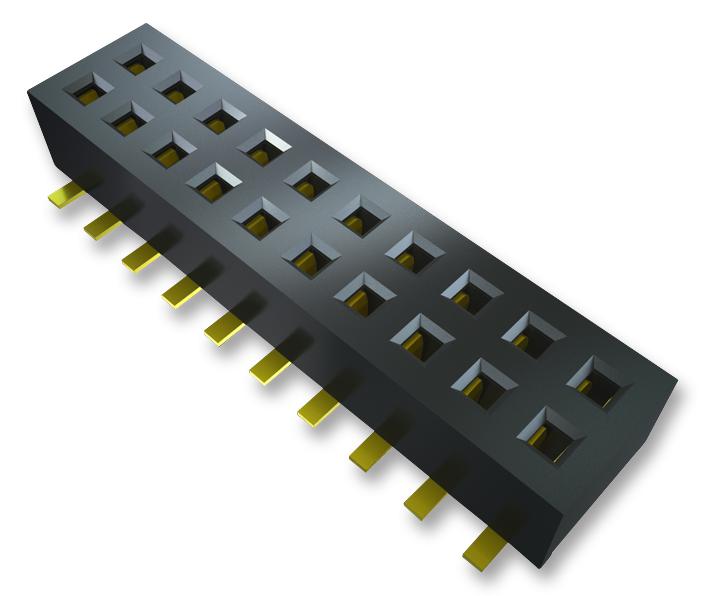

SAMTEC CLP10602SMDA Dual Wipe Socket
The compact dual wipe socket features a low-profile design with a height of 2.21 mm, ideal for pass-through applications in high-density electronic assemblies. Manufactured with black liquid crystal polymer insulators and phosphor bronze contacts, it offers reliable electrical performance with a current rating of 4A per pin and voltage ratings up to 395 VOC. Suitable for operating temperatures between -55°C and +125°C, it provides high durability with up to 100 cycles and RoHS compliance. Its small footprint and customizable options make it perfect for fine-pitch, space-saving PCB connections in demanding industrial applications.
SAMTEC CLP10602SMDA Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" (1.27 mm)
- Current Rating: 4A per pin
- Voltage Rating: 280 VAC / 395 VOC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: Top Entry: 1.40 mm (.055"), Bottom Entry: 2.41 mm (.095"), DH Entry: 2.34 mm (.091") to 2.67 mm (.105")
- Normal Force: 60 grams (0.59 N) average
- Max Cycles: 100 with 10 μ" (0.25 μm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004"), 0.15 mm (.006") depending on pin count
- Suitable for pass-through and bottom entry applications, with options for different pin counts and platings
- Contact Pitch: 1.27 mm (0.050") x 0.050"
- Dimensions vary, with height of 2.21 mm, width from 4.00 mm to 8.25 mm, and diameter ~4.00 mm
- Number of Positions: 5+
- Compatibility: Compatible with high-relability Tiger Claw contacts and fine-pitch PCB connectors
Buy the Samtec CLP-107-02-F-D P – Reliable Dual Wipe Socket for Industrial Applications
Experience reliable and space-efficient PCB connections with this dual wipe socket featuring a low-profile 2.21 mm height. Crafted from high-quality liquid crystal polymer and phosphor bronze, it ensures durability, excellent electrical performance, and RoHS compliance. Suitable for pass-through and bottom entry applications, its customizable options and high cycle life make it ideal for industrial, professional, and electronics manufacturing environments. Purchase online easily and ensure your project benefits from high-reliability connectors designed for demanding applications and space-constrained designs.
Get Samtec CLP-107-02-F-D today—built for precision and long-lasting durability in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC CLP10602SMDA?
You can click on the BUY or RFQ button to purchase CLP10602SMDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10602SMDA?
You can download the CLP10602SMDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10602SMDA?
SAMTEC
