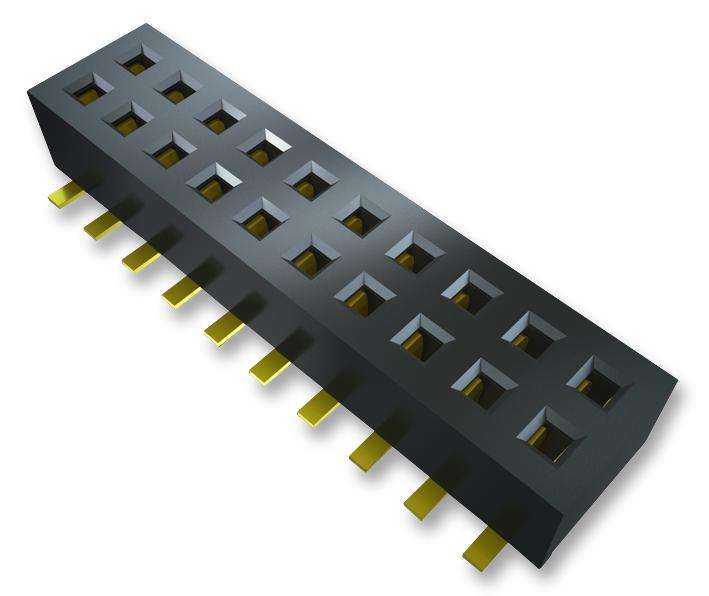

SAMTEC CLP10702FD micro pitch socket
The low-profile dual wipe socket is designed for high-reliability micro pitch applications featuring black liquid crystal polymer insulation, phosphor bronze contacts, and optional gold or tin plating over 50 micro inches. It supports operating temperatures from -55°C to +125°C, with a maximum current of 4A per pin and voltage ratings up to 280V AC. The socket accommodates various entry depths with a normal force of 60 grams. RoHS compliant and lead-free, this socket ensures secure, durable connections suitable for PCB pass-through and bottom entry applications in space-constrained electronic assemblies.
SAMTEC CLP10702FD micro pitch socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 micro inches
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 280 VAC/395 VOC
- Current Rating: 4A per pin
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.41 mm, DH Entry 2.34 mm to 2.67 mm
- Normal Force: 60 grams (0.59 N)
- Maximum Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm to 0.15 mm
- Applicable for pass-through and bottom entry applications
- Number of Positions: 5 or more, with various pin and alignment options
- Dimensions: Diameter 4.00 mm, height 7 inches (varies with configuration)
Buy the Buy High-Relability Micro Pitch Socket Part Number CLP10702FD Online
Purchase the high-reliability micro pitch low-profile socket CLP10702FD online today. Designed with black liquid crystal polymer insulation and phosphor bronze contacts, it offers excellent thermal and electrical performance. Suitable for PCB pass-through or bottom entry mounting, it supports up to 4A per pin and voltage ratings of 280V AC. RoHS compliant and lead-free, this socket guarantees long-lasting, secure connections in tight spaces. Order now to ensure reliable connections in your high-density electronic projects with quick and easy online checkout.
Buy High-Relability Micro Pitch Socket CLP10702FD now and experience secure, durable connections for space-constrained electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CLP10702FD?
You can click on the BUY or RFQ button to purchase CLP10702FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10702FD?
You can download the CLP10702FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10702FD?
SAMTEC
