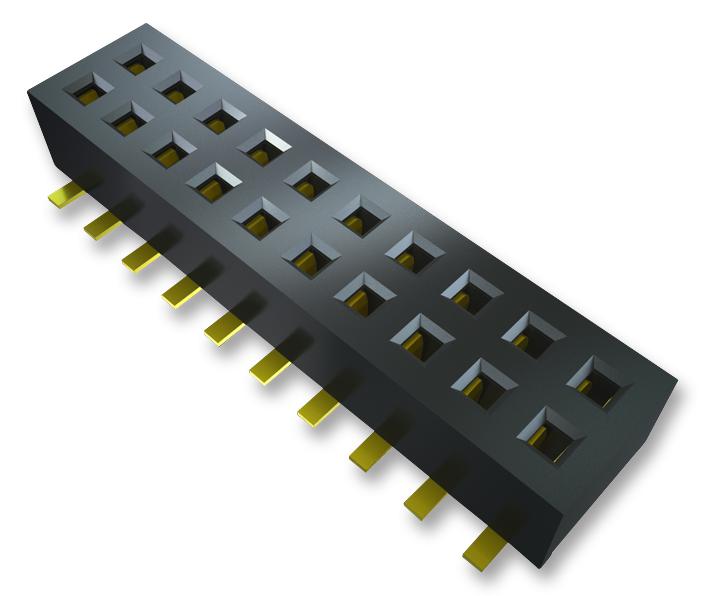

SAMTEC CLP10802GD Dual Wipe Socket
The CLP series from Samtec offers high-reliability, low-profile dual wipe socket strips designed for surface mounting in industrial and electronic applications. Made with phosphor bronze contacts and black liquid crystal polymer insulators, these connectors feature a pitch of 1.27mm and support 2 to 50 contacts per row in single or double-row configurations. They operate within a temperature range of -55°C to 125°C, have a voltage rating of 240VAC / 340VDC, and support 100 mating cycles. Their rugged design ensures dependable performance in demanding conditions, suitable for various electronic assembly needs.
SAMTEC CLP10802GD Dual Wipe Socket Specifications:
- Pitch: 1.27mm
- Number of contacts: 2 to 50 per row
- Operating temperature: -55°C to 125°C
- Material: Phosphor Bronze contacts, black Liquid Crystal Polymer insulator
- Voltage rating: 240VAC / 340VDC
- Plating: 10 micro-inch gold over nickel
- Maximum cycles: 100
- Mounting type: Surface mount
- RoHS compliant: Yes
- Compatible with: Samtec FTSH, FTS, and FW series connectors
- Color: Black insulator
- Current rating: 4A per pin
Buy the Samtec CLP-108-02-GD – Reliable Dual Wipe Socket for Industrial Applications
Discover the high-quality Samtec CLP-108-02-GD dual wipe socket strip, ideal for surface mounting in industrial electronics. With a 1.27mm pitch and support for up to 50 contacts, these rugged connectors are built for reliability. Made from phosphor bronze and black liquid crystal polymer, they operate efficiently within -55°C to 125°C and support 240VAC / 340VDC. Rated for 100 mating cycles, they are perfect for demanding industrial applications requiring durable and high-performance electronic connectors. Purchase online now for fast delivery.
Order your Samtec CLP-108-02-GD series socket strip today and equip your projects with dependable, high-performance connectors designed for demanding environments.
