SAMTEC CLP10802GDKTR Dual Wipe Socket
The CLP series from Samtec features Tiger Claw low-profile, rugged, and reliable dual wipe socket strips designed for industrial applications. These surface-mount connectors have a pitch spacing of 1.27mm with options for 2 to 50 contacts per row, including double-row configurations. Made from phosphor bronze contacts and black liquid crystal polymer insulators, they operate within a temperature range of -55°C to 125°C, rated for 240VAC and 340VDC. They support up to 100 mating cycles, feature 10-micron gold plating, are RoHS compliant, and suitable for pass-through and high-reliability applications.
SAMTEC CLP10802GDKTR Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 u" (1.27 mm)
- Current Rating: 4A per pin
- Rated Voltage: 280 VAC / 395 VOC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry = 1.40 mm, Bottom Entry = 2.41 mm, DH Entry = 2.34 mm to 2.67 mm
- Normal Force: 60 grams (0.59 N)
- Max Mating Cycles: 100 with 10 micron Au
- RoHS Compliant: Yes
- Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.10 mm (.004") or 0.15 mm (.006")
- Number of Positions: 2 to 50 per row
- Pitch Spacing: 1.27 mm
- Applicable for pass-through, right-angle, and high-reliability PCB mount applications

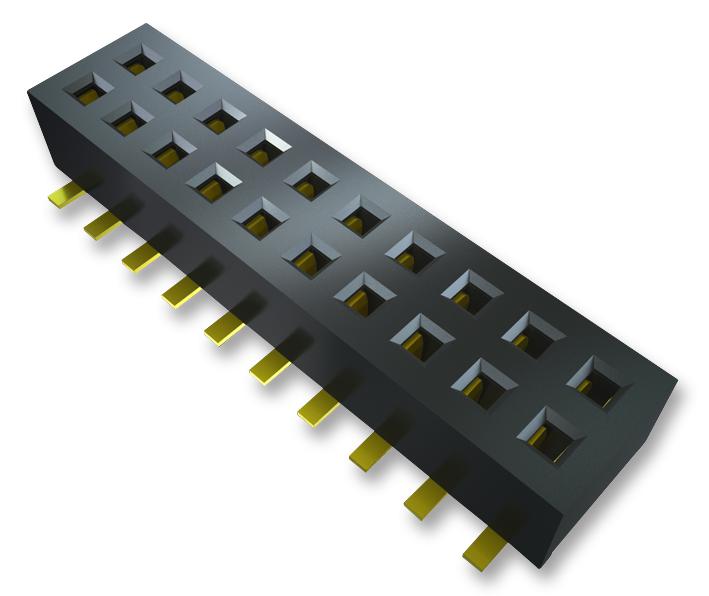

Buy the Samtec Series CLP Dual Wipe Socket Reliable Pass-Through Connector: CLP10802GDKTR
Order the Samtec CLP series dual wipe socket strips online today and experience their rugged, reliable design, ideal for industrial, high-density, and pass-through PCB applications. These connectors support up to 50 contacts per row with a 1.27mm pitch, rated for 240VAC and 340VDC, and capable of enduring 100 mating cycles. Made from phosphor bronze and liquid crystal polymer insulators, they guarantee optimal performance within a temperature range of -55°C to 125°C. Secure your electronics assembly with these dependable connector strips designed for demanding environments.
Get Samtec CLP-107-02-F-D-P today—built for precision and long-lasting durability in high-reliability PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC CLP10802GDKTR?
You can click on the BUY or RFQ button to purchase CLP10802GDKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP10802GDKTR?
You can download the CLP10802GDKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP10802GDKTR?
SAMTEC
