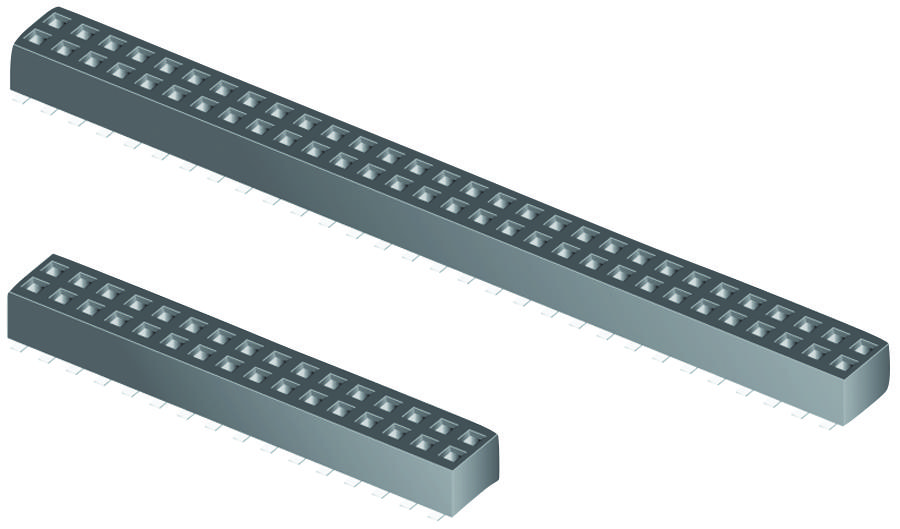

SAMTEC CLP11002LD Pass-Through Socket
This low-profile dual wipe socket features a black liquid crystal polymer insulator, phosphor bronze contacts plated with tin or gold over 50 micrometers. Designed for high-reliability PCB connections, it supports currents up to 4A per pin, with operating temperatures from -55°C to +125°C. The socket accommodates various entry depths, ensuring secure and stable mounting in pass-through applications. RoHS compliant, it's suitable for high-density, space-efficient electronic assemblies, offering up to 100 insertion cycles. Ideal for micro pitch, SMT, and customizable configurations, ensuring versatile use in modern electronic systems.
SAMTEC CLP11002LD Pass-Through Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 u" (1.27 mm)
- Current Rating: 4A per pin
- Voltage Rating: 280 V AC / 395 V DC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry = 1.40 mm (0.055"), Bottom Entry = 2.41 mm (0.095"), DH Entry = 2.34 mm (0.091" to 2.67 mm (0.105")
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") to 0.15 mm (0.006")
- Suitable for pass-through and mounting applications
- Multiple pin and contact options available
- Compatible with micro pitch contacts and high-density configurations
Buy the Buy Samtec Pass-Through Socket Part Number CLP11002LD Online
Purchase the Samtec CLP11002LD pass-through socket online to ensure high-quality, reliable connections for your electronic projects. This low-profile socket offers a space-efficient, durable design with phosphor bronze contacts plated with tin or gold, supporting up to 4A per pin. Operating between -55°C and +125°C, it is RoHS compliant and features various entry depths for versatile mounting. Ideal for high-density PCB assemblies, it guarantees secure, long-lasting electrical connections, making it a valuable component for advanced electronic systems and reliable manufacturing processes.
Get Samtec CLP11002LD today—designed for high reliability, space-saving PCB connections, and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC CLP11002LD?
You can click on the BUY or RFQ button to purchase CLP11002LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP11002LD?
You can download the CLP11002LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP11002LD?
SAMTEC
