SAMTEC CLP11302FDH Dual Wipe Socket
The CLP series from Samtec offers high-reliability, surface-mount dual wipe socket strips with Tiger Claw design, ideal for rugged industrial use. Featuring a 1.27mm pitch and configurations from 2 to 50 contacts, they support horizontal and bottom entry mounting. Constructed with phosphor bronze contacts plated with gold flash for excellent conductivity, these sockets operate efficiently from -55°C to 125°C, with a maximum current of 4A per pin. The black liquid crystal polymer insulator ensures high mechanical strength and electrical insulation, certified for 240VAC and 340VDC, and comply with UL standards, perfect for demanding applications.
SAMTEC CLP11302FDH Dual Wipe Socket Specifications:
- Pitch: 1.27 mm
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 micrometers
- Insulator Material: Black Liquid Crystal Polymer
- Operating Temp Range: -55°C to 125°C
- Current Rating: 4A per pin (2 ins powered)
- Voltage Rating: 280 V AC / 395 V DC
- Insertion Depth: Top Entry = 1.40 mm, Bottom Entry = 2.41 mm, DH Entry = 2.34 mm to 2.67 mm
- Maximum Cycles: 100 with 10 μ
- solid gold contacts for durability
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mounting Options: Horizontal, Bottom, and Pass-Through
- Contact Resistance: Low contact resistance for reliable electrical connection
- Compliance: UL Listed, RoHS certified

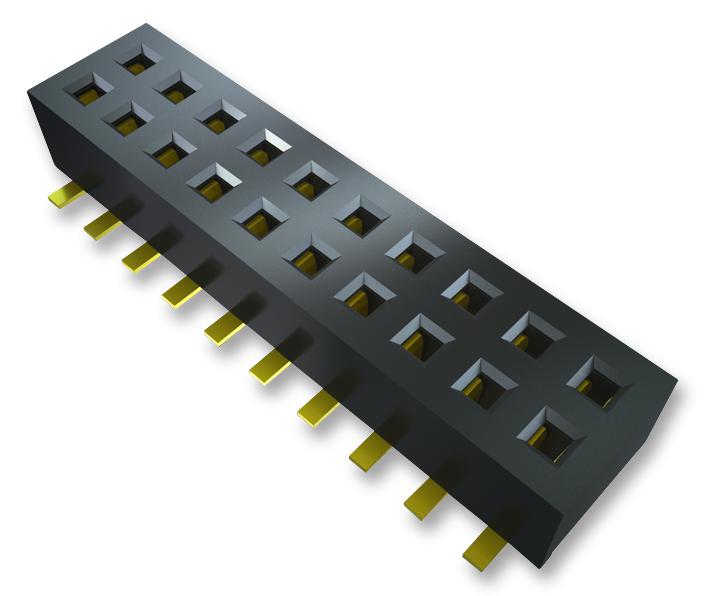

Buy the Samtec Series CLP Dual Wipe Socket: CLP-113-02-F-D-P
Enhance your electronic assembly with the durable and high-performance Samtec Dual Wipe Socket. Designed for surface mounting, this socket offers a 1.27mm pitch, high temperature tolerance, and gold plating for optimal conductivity. Its robust construction with phosphor bronze contacts ensures long-term reliability, even in demanding environments. Suitable for industrial, automation, and control applications, it provides excellent electrical performance and easy installation with multiple mounting options including pass-through and bottom entry. Order online now for fast delivery and trusted quality.
Order your Samtec Series CLP-113-02-F-D-P rugged dual wipe socket today and ensure reliable electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC CLP11302FDH?
You can click on the BUY or RFQ button to purchase CLP11302FDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLP11302FDH?
You can download the CLP11302FDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLP11302FDH?
SAMTEC
