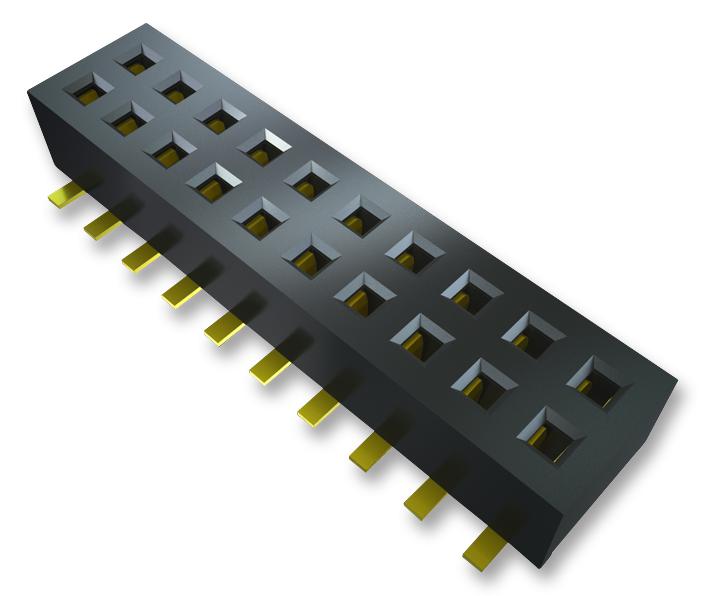

SAMTEC CLP11502GDAK Dual Wipe Socket
The CLP-115-02-L-D dual wipe socket is a high-reliability, low-profile pass-through connector suitable for micro pitch PCB applications. Featuring a 2.21 mm height and 1.27 mm pitch, it offers a current rating of 4A per pin, with operating temperatures from -55°C to +125°C. Constructed from black liquid crystal polymer and phosphor bronze, it has optional Sn or Au plating over 50 microns of contact, ensuring durability. Designed for both top and bottom entry configurations, it includes alignment pins for precise positioning, and is RoHS compliant with lead-free solderability, ideal for high-density electronic assemblies.
SAMTEC CLP11502GDAK Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Sn or Au over 50 microns
- Current Rating: 4A per pin
- Voltage Rating: 280 VAG/395 VOC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.41 mm, DH Entry 2.34 mm to 2.67 mm
- Normal Force: 60 grams
- Max Cycles: 100 with 10 µ
- Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm to 0.15 mm depending on pins per row
- Dimensions: Height 2.21 mm, Pitch 1.27 mm, Diameter 4.00 mm, Length varies based on configuration
- Suitable for pass-through mounting and high-density applications
- Includes alignment pins for precise positioning
- Compatible with Tiger Claw contacts and various mounting options.
