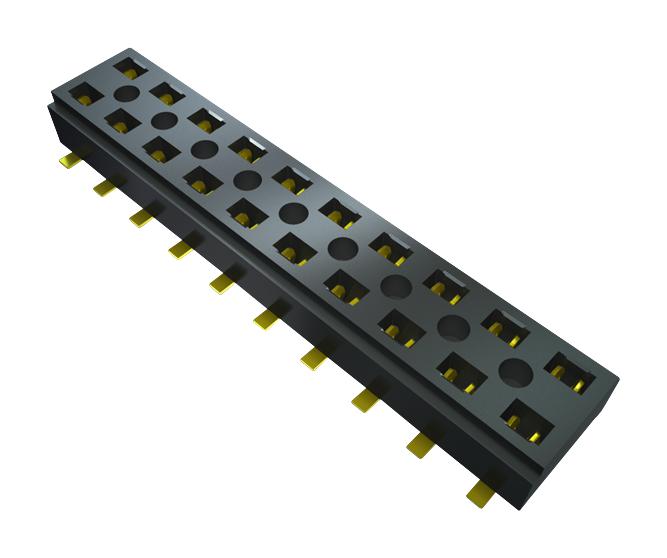

SAMTEC CLT10402FDBEA Pass-Through Connector
The CLT-105-02-F-D is a high-performance SMT connector featuring a 2.00 mm pitch with a black Liquid Crystal Polymer insulator and phosphor bronze contacts. It supports operating temperatures from -55°C to +125°C, with a maximum of 1,000 mating cycles, and is RoHS compliant. Designed for pass-through applications, it mates with multiple Samtec series, offering reliable electrical contact with gold or tin plating. Its low-profile and high cycle durability make it ideal for compact electronic assemblies and PCB connections requiring robustness and precision in a wide temperature range.
SAMTEC CLT10402FDBEA Pass-Through Connector Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" (1.27 μm)
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.57 mm
- Max Cycles: 1,000 with 10 μ" (0.25 μm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004 inches) max
- Compatible with: Pick & Place Pads, TMM, TMMH, MTMM, Tiger Claw, etc.
- Additional options include various plating styles and configurations.
- Applicable for pass-through applications with high reliability and durability.
Buy the Buy Samtec Pass-Through Connector Part Number CLT-105-02-F-D Online
Order the Samtec CLT-105-02-F-D pass-through connector today to ensure reliable electrical connections in compact and demanding electronic assemblies. Featuring a 2.00 mm pitch, high cycle durability, and RoHS compliance, this connector is suitable for PCB applications that require robustness, precision, and excellent temperature range performance. Built with high-quality phosphor bronze contacts and liquid crystal polymer insulator, it guarantees long-term stability, corrosion resistance, and easy attachment for auto placement and surface-mount designs. Make your purchase now for dependable electronic connectivity solutions.
Get Samtec CLT-105-02-F-D today—designed for high-performance PCB connections and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC CLT10402FDBEA?
You can click on the BUY or RFQ button to purchase CLT10402FDBEA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLT10402FDBEA?
You can download the CLT10402FDBEA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLT10402FDBEA?
SAMTEC
