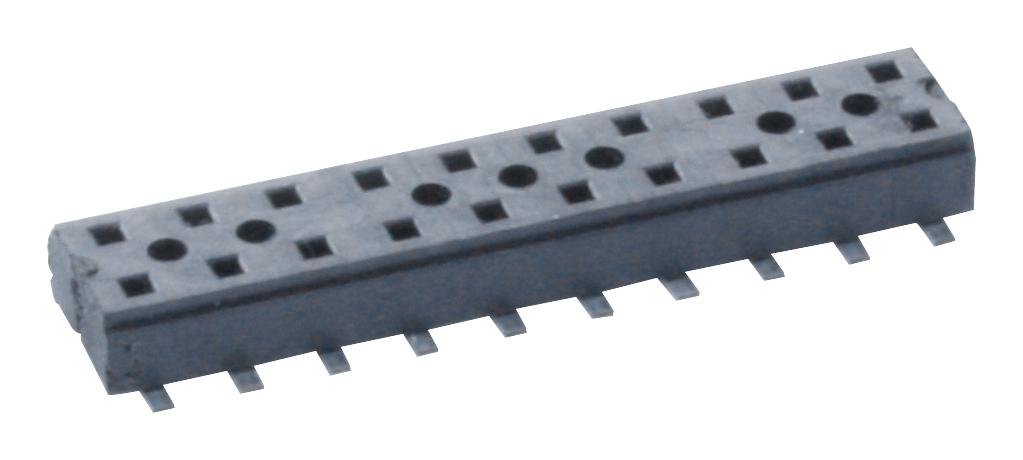

SAMTEC CLT11502HDBEA Low-Profile PCB Connector
The CLT-115-02-F-D is a high-performance, PCB mount low-profile connector designed for pass-through applications. Crafted with black liquid crystal polymer insulators and phosphor bronze contacts, it offers robust electrical and mechanical properties. Rated for -55°C to +125°C, it supports a maximum of 1,000 insertion cycles with gold or tin plating options. Its compact design ensures easy integration into dense PCB layouts, and it is RoHS compliant, lead-free, and suitable for automated assembly. Ideal for electronics requiring reliable, high-temperature connections with low insertion force and coplanarity specifications.
SAMTEC CLT11502HDBEA Low-Profile PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or A over 50 µ" (1.27 µm)
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.57 mm
- Max Cycles: 1,000 with 10 µ" (0.25 µm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: ≤ 0.10 mm (.004")
- Number of Positions: Minimum 4, with options up to 50
- Pass-Through Applications
- Pitch: 2.00 mm (.0787")
- Material: Polyimide Film (for certain models)
- Suitable for auto placement
Buy the Buy Samtec Low-Profile Connector Part Number CLT-115-02-F-D Online
Discover the high-quality CLT-115-02-F-D low-profile PCB connector available online. Engineered with durable materials and broad temperature support, this connector ensures reliable pass-through connections in dense electronic assemblies. Perfect for automated manufacturing, it offers excellent coplanarity, RoHS compliance, and up to 1,000 insertion cycles. Whether for industrial, consumer, or automotive electronics, buy this versatile connector now to enhance your PCB design with a dependable, lead-free solution.
Buy Samtec CLT-115-02-F-D now and experience unmatched reliability and high-temperature performance for PCB pass-through applications.
Frequently Asked Questions
Where can I buy SAMTEC CLT11502HDBEA?
You can click on the BUY or RFQ button to purchase CLT11502HDBEA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLT11502HDBEA?
You can download the CLT11502HDBEA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLT11502HDBEA?
SAMTEC
