SAMTEC CLT13501LD Dual Wipe Socket Strip
The CLT series from Samtec features rugged Tiger Claw dual wipe socket strips designed for dependable electrical connections in industrial applications. These low-profile, 2mm pitch socket strips support 2 to 50 contacts per row and are compatible with Samtec TMM, TMMH, MTMM, MMT, TW, and TSH connectors. They feature black liquid crystal polymer insulators, phosphor bronze contacts plated with gold or tin, and operate between -55°C and 125°C. Rated for 100 cycles, they ensure durability, reliable contact resistance of 10 milliohms, and RoHS compliance, making them ideal for high-performance electronic assemblies.
SAMTEC CLT13501LD Dual Wipe Socket Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μin (1.27 μm)
- Current Rating: 4.1 A per pin
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: Top Entry 1.40 mm, Bottom Entry 2.57 mm
- Insertion Force: 1.8 oz (0.50 N) per contact
- Withdrawal Force: 6.02 oz (0.17 N) per contact
- Max Cycles: 100 with 10 μm Au
- RoHS Compliant: Yes

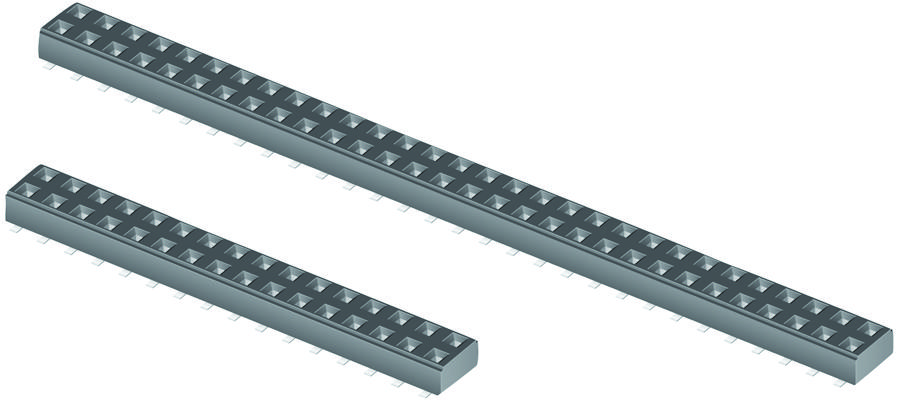

Buy the Buy Samtec CLT Series Part Number CLT13501LD Online
Secure your projects with the high-quality Samtec Dual Wipe Socket Strip. Featuring a 2mm pitch and gold-plated contacts, it supports up to 50 contacts with durability for 100 mating cycles. Made from black liquid crystal polymer insulator and phosphor bronze contacts, these modules operate reliably from -55°C to +125°C. Perfect for industrial automation, the socket strip offers easy PCB mounting, RoHS compliance, and excellent contact resistance. Order online now for fast delivery and seamless integration into your electronic designs.
Buy Samtec CLT13501LD now and experience unmatched reliability and high-performance electrical connections in your industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC CLT13501LD?
You can click on the BUY or RFQ button to purchase CLT13501LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part CLT13501LD?
You can download the CLT13501LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of CLT13501LD?
SAMTEC
