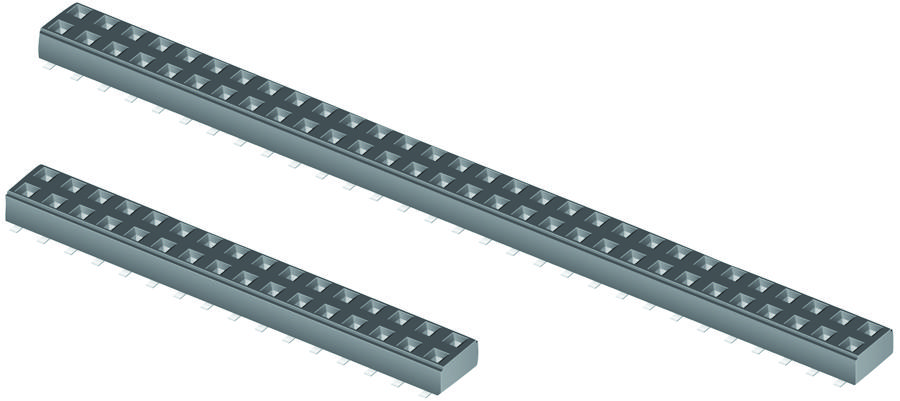

SAMTEC CLT14502LD Dual Wipe Socket
The SAMTEC CLT-145-02-L-D is a low-profile dual wipe socket engineered for demanding applications requiring robust and reliable connections. Featuring Tiger Claw contacts, this connector ensures consistent performance and long life. It supports high-speed differential pair signaling up to 6.5 GHz / 13 Gbps and is suitable for a wide range of industrial and commercial applications. The connector is RoHS compliant and designed for easy integration into PCB designs.
SAMTEC CLT14502LD Dual Wipe Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50µ" (1,27µm) Ni
- Current Rating: 3.3A @ 80°C ambient (6 contacts powered)
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 m Ω max
- Insertion Depth Top Entry: (1,40mm) .055" minimum
- Insertion Depth Bottom Entry: (2,57mm) .101" minimum
- Insertion Force: 1.8oz (0,50N) avg. (Single contact only)
- Withdrawal Force: 0.6oz (0,17N) avg. (Single contact only)
- Max Cycles: 100 with 10µ" (0,25µm) Au
- Lead–Free Solderable: Yes
- SMT Lead Coplanarity: (0,10mm) .004" max (02-25) (0,15mm) .006" max (26-34) (0,20mm) .008" max (35-50)
