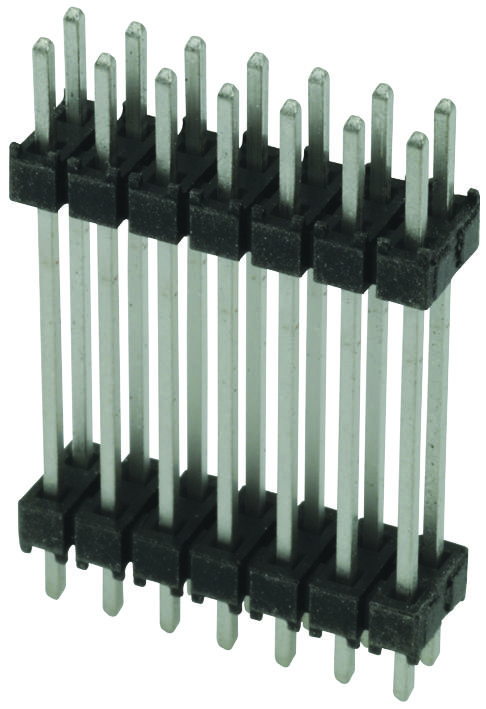

SAMTEC DW0110TD563 Board Connector
The product is a flexible electrical connector with a 2.54 mm pitch, featuring black glass-filled polyester insulators and phosphor bronze terminals plated with gold or tin. Designed for reliable signal and power transmission in industrial environments, it operates within -55°C to +125°C temperatures. Suitable for board stacking applications, it includes options for different heights, styles, and plating finishes. The connector ensures RoHS compliance and offers robust mechanical stability with recommendations for mechanical spacers in gold-plated variants. It supports high-density configurations and is manufactured to precise specifications for durability and performance.
SAMTEC DW0110TD563 Board Connector Specifications:
- Pitch: 2.54 mm
- Insulator Material: Black Glass-Filled Polyester (DW, ZW) or Natural Liquid Crystal Polymer (HW)
- Terminal Material: Phosphor Bronze
- Plating: Gold (50 µin) or Tin (wet or wave only), Ni underplate
- Operating Temperature Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- RoHS Compliant: Yes
- Wave Solderable: Yes for HW, No for DW, ZW
- Mechanical Stability: Use of mechanical board spacers recommended for gold or selective gold plating
- Connector Style: Stacker, with various height options
- Dimensions: Length varies with model, approximations include 19.46 mm and 21.08 mm
- Certifications: RoHS, various industry standards
- Application: Board stacking, high-density connections in industrial automation
