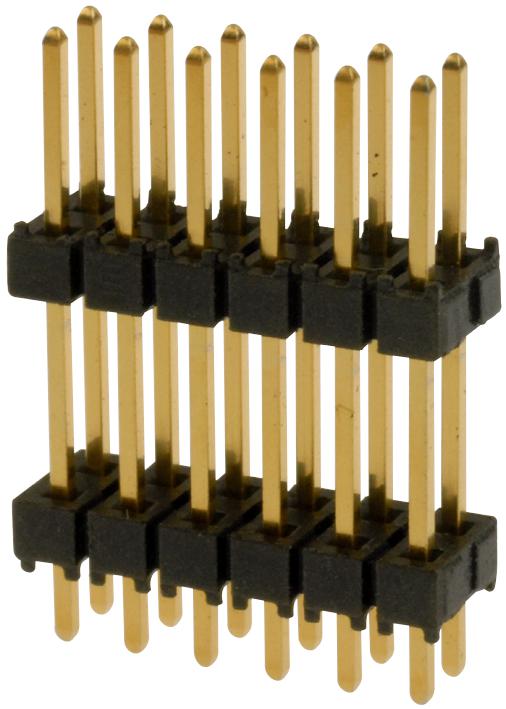

SAMTEC DW0510LD550 Flexible Board Stacker Connector
SAMTEC's DW series flexible board stacker connectors provide a robust solution for stacking boards in various industrial applications. These connectors are available with different lead styles, plating options (gold or tin), and stacker heights to accommodate diverse design needs. They are RoHS compliant and designed for reliable performance in environments ranging from -55°C to +125°C (with gold plating) or -55°C to +105°C (with tin plating). For optimal mechanical stability, Samtec recommends using mechanical board spacers.
SAMTEC DW0510LD550 Flexible Board Stacker Connector Specifications:
- Mates with: SSW, SSQ, ESW, ESQ, CES, SLW, BSW, BCS, SSM, HLE, PHF
- Operating Temp Range: -55 °C to +125 °C (with Gold), -55 °C to +105 °C (with Tin)
- RoHS Compliant: Yes
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Insulator Material: DW, EW, ZW: Black Glass Filled Polyester, HW: Natural Liquid Crystal Polymer
- Lead Style: Specify LEAD STYLE
- OAL: (6.35 mm)
- Stacker Height: (5.08 mm) .200"
- Tail Length: (1.40 mm) .055"
- No. of Pins Per Row: Specify
- Overall Length: (10.92) .430"
- Row Height: (13.46) .530"
- Stacker Options: ZW or HW
- Minimum Example: (18.54) .730"
- Custom Tail: Available
- Locking: –LL
- Shortest Tail Dimension: (8.38 mm) .330"
- Gold Flash on Contact: Matte Tin on tail
- No. of Positions: 01 thru 50
- Tail Length (Longer Tail): (7.87 mm)
- Gold on Contact Area: 10 µ" (0.25 µm)
- Matte Tin on Tail: (2.29 mm)
