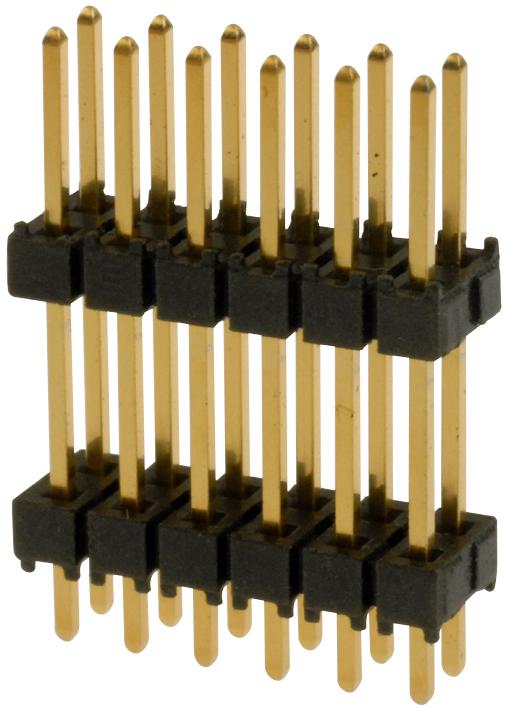

SAMTEC DW0510SD474LL Flexible Board Stacker Connector
SAMTEC's DW series flexible board stacker connectors provide a robust and reliable solution for connecting flexible boards in electronic assemblies. Constructed with a black glass-filled polyester insulator and phosphor bronze terminals, these connectors offer excellent electrical and mechanical performance. Available with gold or tin plating options, they cater to diverse application requirements. The RoHS compliant and lead-free solderable design ensures environmental compatibility and ease of integration into modern manufacturing processes. Ideal for applications requiring secure and space-efficient board-to-board connections, the DW series is a versatile choice for engineers and designers.
SAMTEC DW0510SD474LL Flexible Board Stacker Connector Specifications:
- Mates with: SSW, SSQ, ESW, ESQ, CES, SLW, BSW, BCS, SSM, HLE, PHF
- Operating Temp Range: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Insulator Material: DW, EW, ZW: Black Glass Filled Polyester, HW: Natural Liquid Crystal Polymer
- RoHS Compliant: Yes
- Lead–Free Solderable: DW, EW, ZW: No (Lead Wave Only), HW: Yes
- Tail Length: (2.79 mm) .110"
- Stacker Height: (5.08 mm) .200"
- Overall Length: (8.38 mm) .330"
- Number of Pins per Row: Specify LEAD STYLE
- Row: Specify
- Stacker Option: ZW or HW
- OAL: (6.35 mm)
- Minimum Example: (10.92) .430
- Custom Tail: Available
- Locking: –LL
- Shortest Tail Dimension: (2.54) .100
- Number of Positions: 01 thru 50
- Gold Flash on Contact: Matte Tin on tail
- Tail Material: Matte Tin
- Pin Position: (2.54).100
- Row Space: (5.08 mm)
