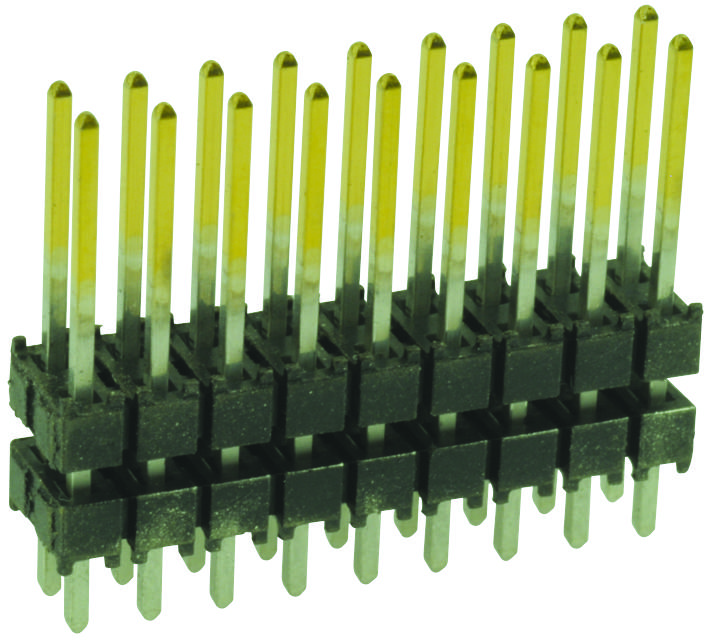

SAMTEC DW0511LD470 Stacker Connector
The product is a flexible, high-performance electrical connector designed for board stacking applications, featuring a 2.54 mm pitch, gold or tin plating, and supporting operating temperatures from -55°C to +125°C. Constructed with durable insulator materials like black glass-filled polyester or liquid crystal polymer, it ensures excellent electrical insulation and mechanical stability. Suitable for precise electronic assemblies, it offers RoHS compliance, easy soldering, and compatibility with multiple connector types, enhancing modularity and reliability in complex systems. Usage spans industrial equipment, control systems, and high-density circuit configurations, delivering robust performance under demanding conditions.
SAMTEC DW0511LD470 Stacker Connector Specifications:
- Pitch: 2.54 mm (.100 inch)
- Insulator Material: Black Glass-filled Polyester, Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with Gold or Tin Plating
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Connector Length: Varies with options, typical length approx. 19.46 mm (0.768 inch) to 21.08 mm (0.830 inch)
- Plating Thickness: 50 µinch (1.27 µm) minimum
- Model Variants: DW, EW, ZW series, different insulator and plating options
- Application: Board stacking, high-density electronic modules, industrial control systems
- Certifications: RoHS compliant, suitable for Wave Soldering
- Additional Notes: Use mechanical spacers for mating stability with gold-plated connectors, non-standard and non-returnable
