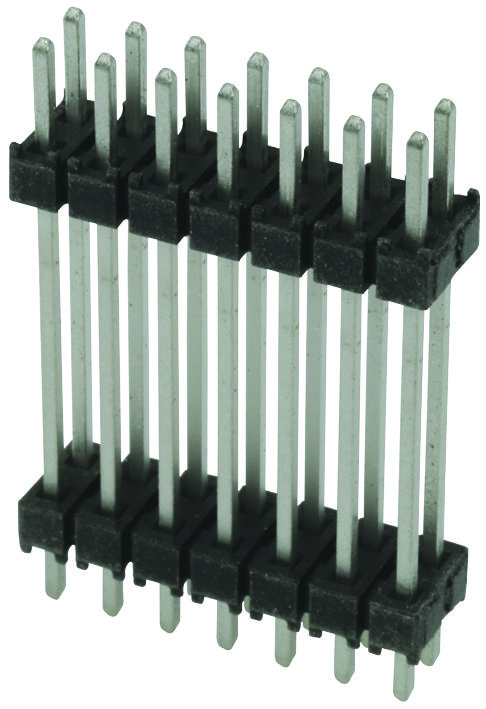

SAMTEC DW0813SD756 Stacker Connector
The DW0813SD756 is a high-quality flexible printed circuit connector designed for reliable electrical connections in compact electronic assemblies. Featuring a 2.54 mm pitch and a flexible .025 SQ E substrate, it offers excellent mechanical stability and excellent current carrying capacity. The connector is RoHS compliant and supports operating temperatures from -55°C to +125°C with gold plating for optimal conductivity. It is ideal for applications requiring precise, durable connections in space-constrained environments, such as PCB stacking, board-to-board connections, and custom electronic modules, ensuring secure and reliable performance.
SAMTEC DW0813SD756 Stacker Connector Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Insulator Material: Black Glass-filled Polyester, Natural Liquid Crystal Polymer for HW version
- Terminal Material: Phosphor Bronze
- Plating: Gold over Ni or Sn over (OAL)
- Plating Thickness: 50 microinches (1.27 μm)
- Operating Temperature Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- RoHS Compliance: Yes
- Solderability: Lead-Free
- Number of Pins: Varies (configurable)
- Connector Type: Stacker with flexible tail
- Dimensions: Length varies with configuration, tail length approximately 4.0 mm, overall width 7.87 mm
- Application: PCB stacking, board-to-board connections, electronic modules
- Construction: Black Glass-filled Polyester insulator, Phosphor Bronze contacts
- Mechanical Stability: Recommended mechanical board spacers for gold or selective gold plating connectors
- Other Plating Options: Nickel, tin
- Certifications: RoHS compliant, UL listed
- Design Flexibility: Non-standard, non-returnable
- Notes: Suitable for applications requiring precise, durable connections in space-constrained environments.
