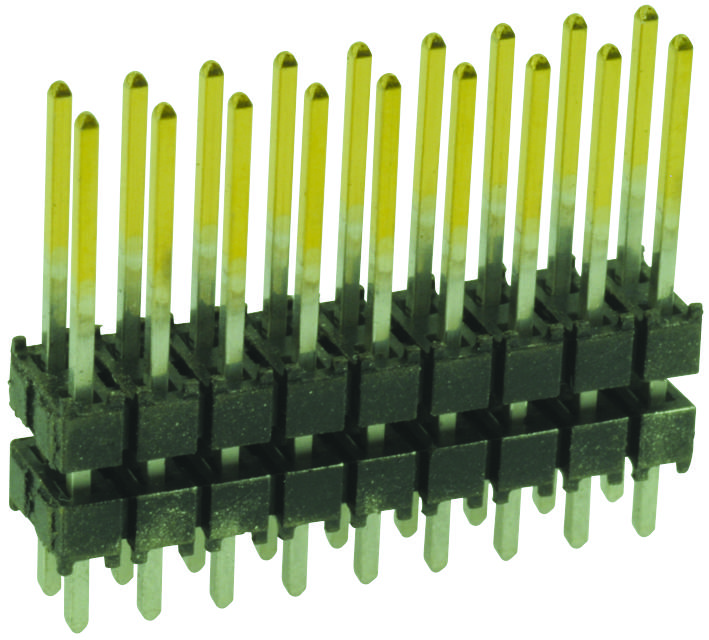

SAMTEC DW0909SD420 Stacker Connector
The DW0909SD420 connector is a flexible, gold-plated, and RoHS-compliant stacking board stacker designed for high-performance electronic applications. It features a durable phosphor bronze contact material with a black glass-filled polyester insulator, suitable for operating temperatures between -55°C and +125°C. The connector offers multiple options for height and pin configurations, with reliable wave solderable features. Its compact size of approximately 2.29 mm width and 7.87 mm height ensures easy integration into densely-packed electronic assemblies, providing excellent mechanical stability and electrical performance for professional use.
SAMTEC DW0909SD420 Stacker Connector Specifications:
- Insulator Material: Black Glass-Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel, Sn over 50 µ” (1.27 µm)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Dimensions: Width approximately 2.29 mm, Height about 7.87 mm
- RoHS Compliant: Yes
- Wave Solderable: Yes
- Number of Pins: Variable, based on configuration
- Connector Type: Stacker, Board-to-Board
- Standard: Non-returnable series
- Other Platings: Optional, consult manufacturer
- Mechanical Stability: Recommended use of spacers for gold-plated versions
- Certifications: RoHS compliant
- Design Flexibility: Multiple height and pin options, suitable for compact electronic modules
