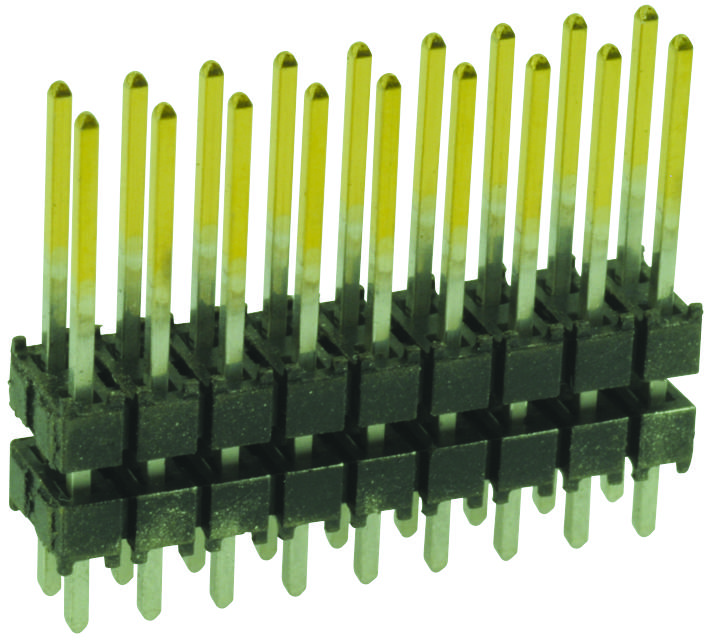

SAMTEC DW0909TD300 Board Stacker Connector
The DW0909TD300 is a flexible, 0.025 sq in board stacking connector compatible with various types such as ZW, HW, and DW series. It features a black glass filled polyester insulator, phosphor bronze terminal material, and gold or tin plating for corrosion resistance. Operating temperatures range from -55°C to +125°C depending on plating, and it complies with RoHS standards. This durable connector supports soldering and mechanical stability, suitable for high-performance electronic assemblies requiring reliable stacking connections with precise specifications and high thermal tolerance.
SAMTEC DW0909TD300 Board Stacker Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50 μin/1.27 μm) or Tin
- Operating Temperature Range: -55°C to +125°C depending on plating
- Dimensions: Length varies by model, typical footprint approximately 19.46 mm to 21.08 mm
- Number of Pins: Varies by configuration (e.g., 2 to 20 pins)
- RoHS Compliant: Yes
- Wave Solderable: Yes for HW, Not for DW, ZW series
- Insulation Material: Polyester or Liquid Crystal Polymer
- Connector Series: DW, EW, ZW, HW
- Application: PCB stacking, electronic device interconnects
- Compatibility: Fits with respective mating connectors from Samtec series
- Mechanical Stability: Reinforced with spacers recommended for gold-plated connectors
- Certification: RoHS compliant
- Environmental resistance: -55°C to +125°C with gold, -55°C to +105°C with tin
- Length variations accommodate different PCB thicknesses and stacking heights
- Notes: Non-standard, non-returnable series, designed for high-reliability connections
- Additional Features: RoHS compliant, lead-free soldering, with optional mechanical spacers
